Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

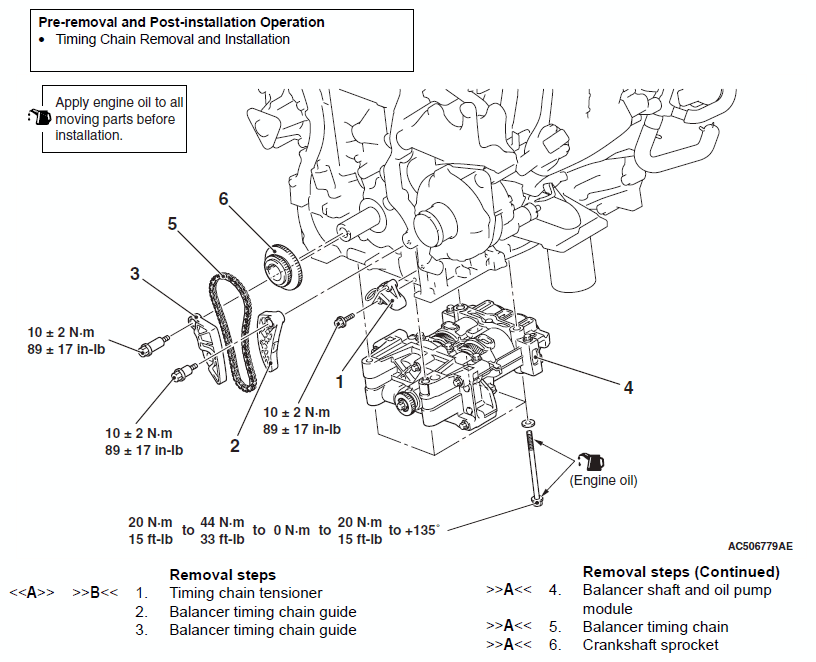

Fig 1: Balancer Timing Chain, Balancer Shaft And Oil Pump Module Replacement Components With Torque Specifications
G06671597Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
