>>A<< Crankshaft Sprocket/Balancer Timing Chain/Balancer Shaft And Oil Pump Module Installation

WARNING: This page is about a different variant/trim than selected.

When installing the new balancer shaft and oil pump module, apply oil to the oil pump in the balancer shaft and oil pump module and the balancer shaft bearing as follows.
1. Clean the inside of the removed engine oil pan, and put the balancer shaft and oil pump module into the engine oil pan with its oil inlet port facing up.
2. Pour new engine oil until two-thirds of the balancer shaft and oil pump module is soaked.
3. Fill the new engine oil [approximately 50 cm³ (3.05 cu.in.)] into the balancer shaft and oil pump module from the oil inlet port.

  Fig 1: Filling Engine Oil To Balancer Shaft And Oil Pump Module From Oil Inlet Port
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Turn the balancer shaft sprocket of the balancer shaft and oil pump module clockwise four rotations or more to apply the engine oil to the entire area of the oil pump and the balancer shaft bearing.

  Fig 2: Turning Balancer Shaft Sprocket Of Balancer Shaft And Oil Pump Module
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
With the link marks (orange or blue) of balancer timing chain aligned with the timing marks of balancer sprocket and crankshaft sprocket, install the balancer shaft and oil pump module together with the balancer timing chain and crankshaft sprocket as one unit to the cylinder block. At this time, securely bring the balancer shaft and oil pump module into contact with the rudder frame mounting area.
Apply an adequate and minimum amount of engine oil to the threads and bearing surfaces of the balancer shaft and oil pump module mounting bolts.

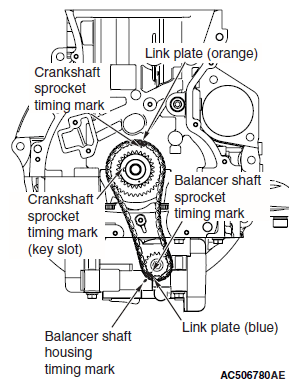

Fig 3: Identifying Timing Marks Of Balancer Sprocket And Crankshaft Sprocket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the balancer shaft and oil pump module mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 20 N.m (15 ft-lb)
Retighten the balancer shaft and oil pump module mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 44 N.m (33 ft-lb)

Fig 4: Identifying Balancer Shaft And Oil Pump Module Mounting Bolts Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Loosen each balancer shaft and oil pump module mounting bolts fully in the reverse sequence to that shown.
Tighten the balancer shaft and oil pump module mounting bolts again to the specified torque in the order of number shown in the illustration.
Tightening torque: 20 N.m (15 ft-lb)
After tightening to the specified torque, tighten the balancer shaft and oil pump module mounting bolts to 135 degrees angle, using special tool MB991614, in the order of number shown in the illustration.

Fig 5: Identifying Balancer Shaft And Oil Pump Module Mounting Bolts Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

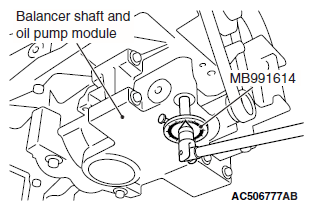

Fig 6: Tightening Balancer Shaft And Oil Pump Module Mounting Bolts Using Special Tool MB991614
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
