Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: When removing and installing the rear wheel speed sensor, make sure that its sensor head does not contact with surrounding parts to avoid damage.

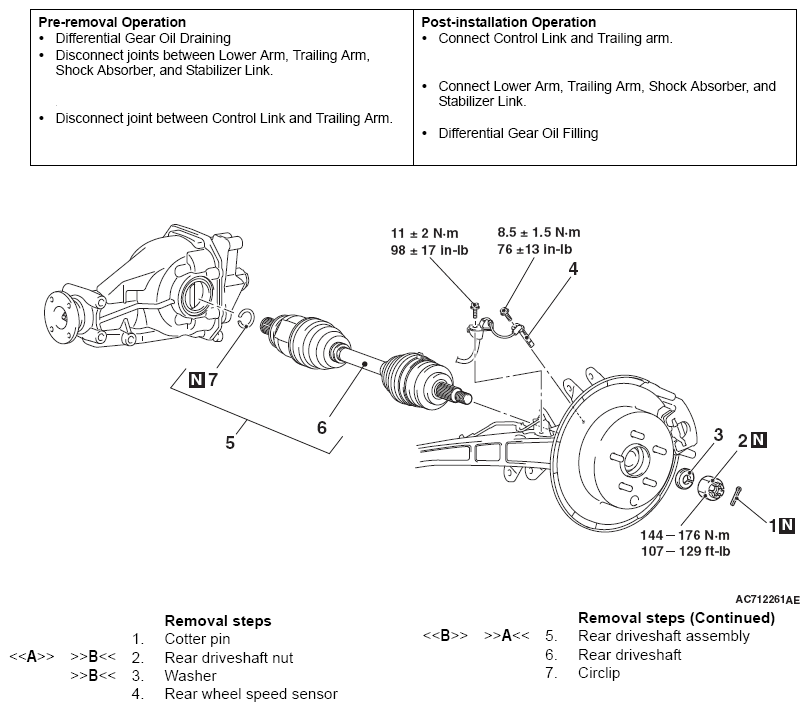

Fig 1: Driveshaft Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990242: Puller Shaft
MB990244: Puller Bar
MB990767: Front Hub and Flange Yoke Holder
MB990998: Front Hub Remover and Installer
MB991000: Spacer
MB991354: Puller Body
