Removal And Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The parts indicated by * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

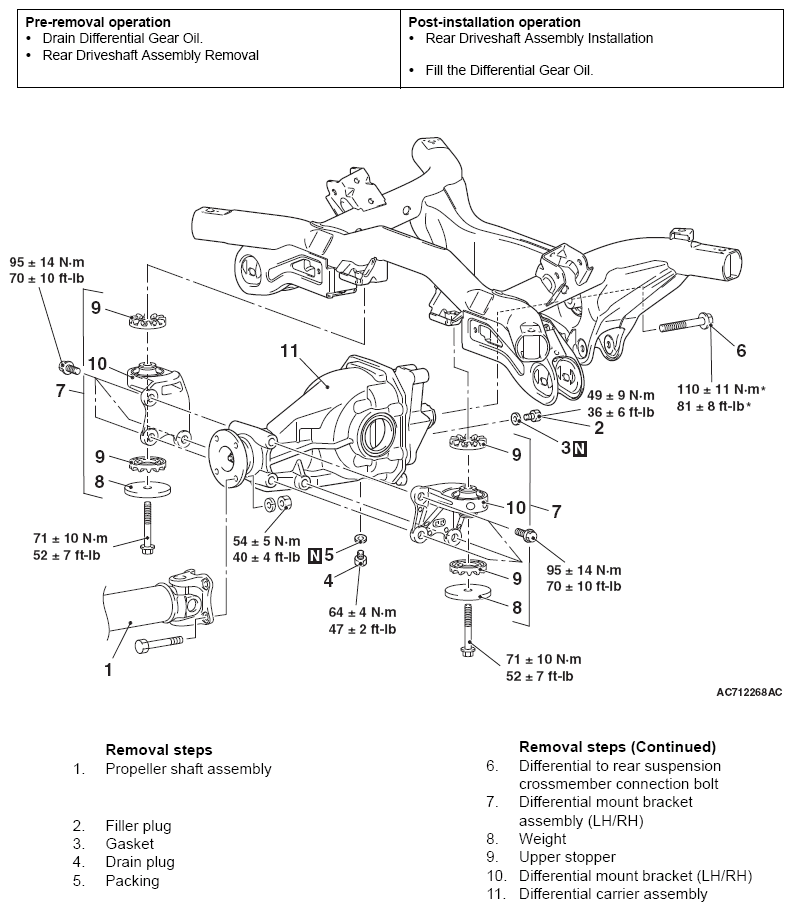

Fig 1: Differential Carrier Assembly Replacement Components With Torque Specifications
G06472079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
