Differential Carrier Assembly: Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

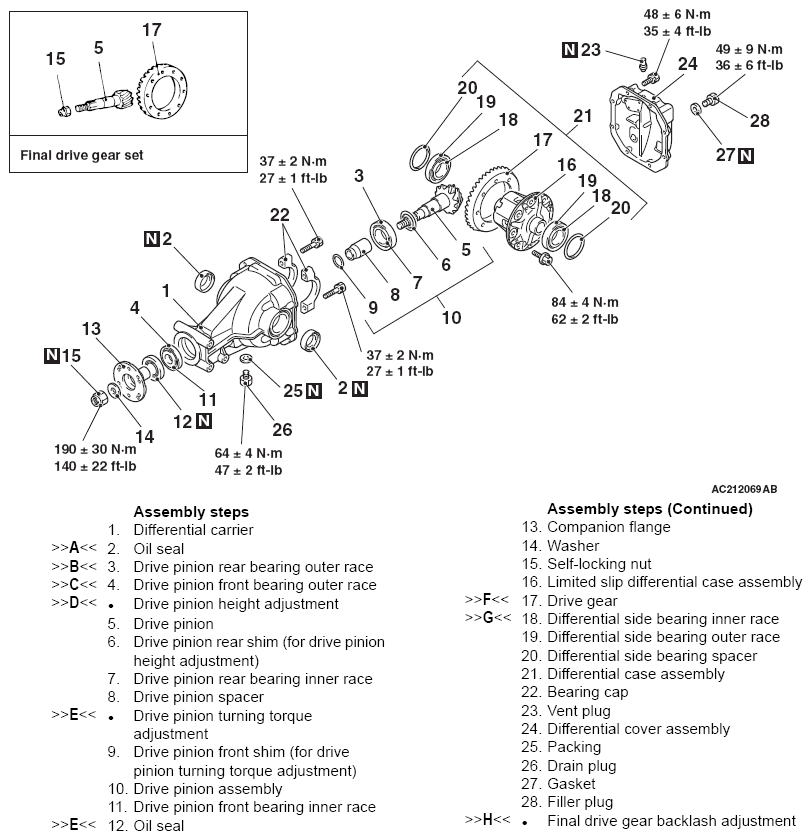

Fig 1: Differential Assembly Replacement Components With Torque Specifications

G06472099

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990326: Preload Socket
MB990392: Cylinder Gauge
MB990685: Torque Wrench
MB990727: Oil Seal Installer
MB990728: Bearing Installer
MB990836: Drive Pinion Gauge Assembly
MB990850: End Yoke Holder
MB990932: Installer Adapter
MB990936: Installer Adapter
MB990938: Installer Bar
MB991115: Oil Seal Installer
