Lubrication And Adhesive Points

WARNING: This page is about a different variant/trim than selected.

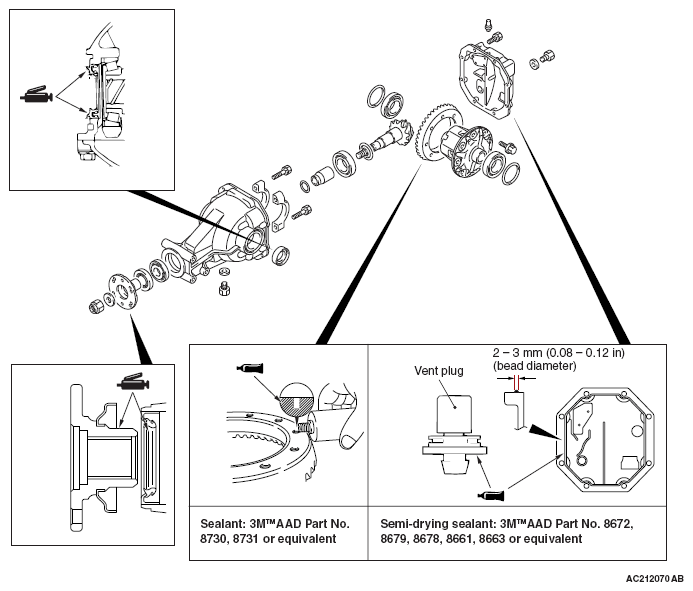

Fig 1: Locating Differential Carrier Lubrication And Adhesive Points
G05904430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
