Removal And Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS SERVICE PRECAUTIONS and SEAT BELT WITH PRE-TENSIONER .

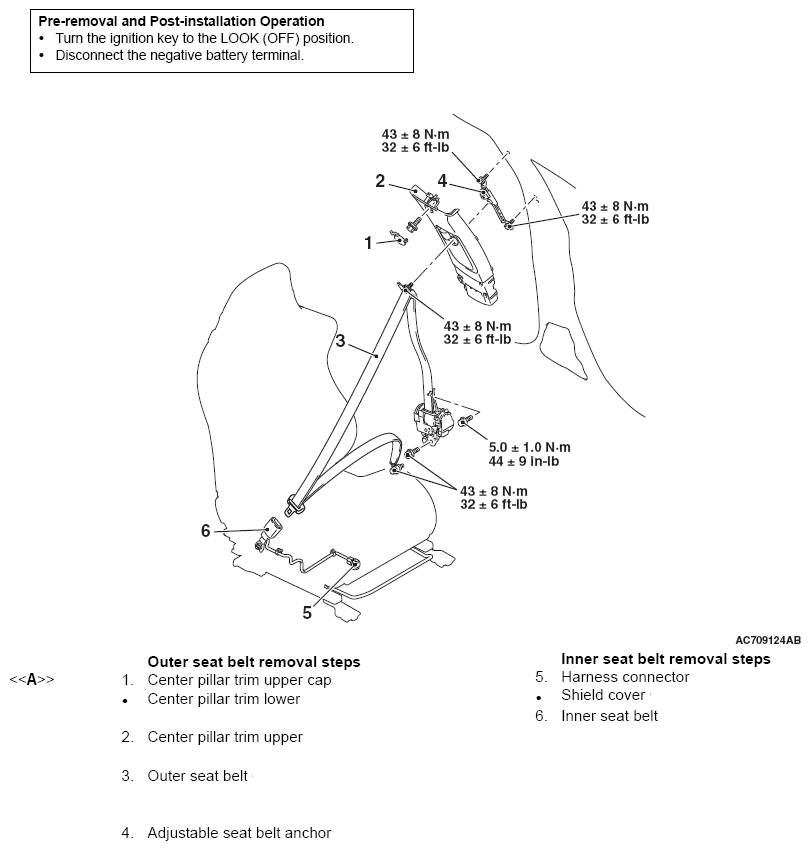

Fig 1: Removal And Installation Of Front Seat Belt With Torque Specifications
G06678006Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
