Inspection Procedure 4: The Audio Does Not Operate Normally By Operating The Radio And CD Player Of The Center Panel Unit: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

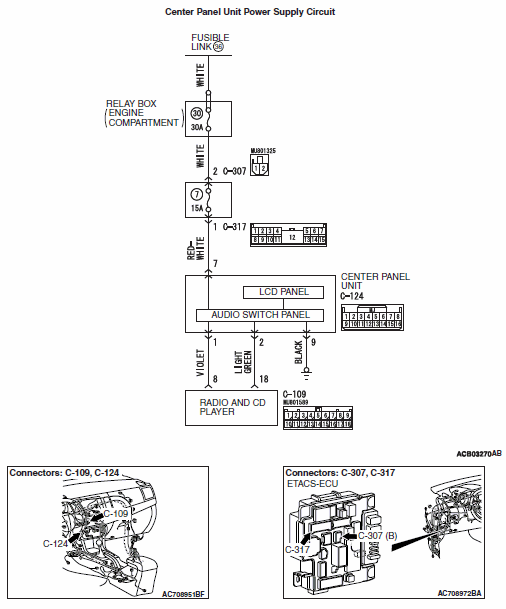

Fig 1: Center Panel Unit Power Supply Circuit Diagram
G00527930Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
