Inspection Procedure 1: Power Is Not Turned ON When The Power Switch Is Turned ON: Notes
WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When replacing the radio and CD player, always check that the communication circuit is normal.

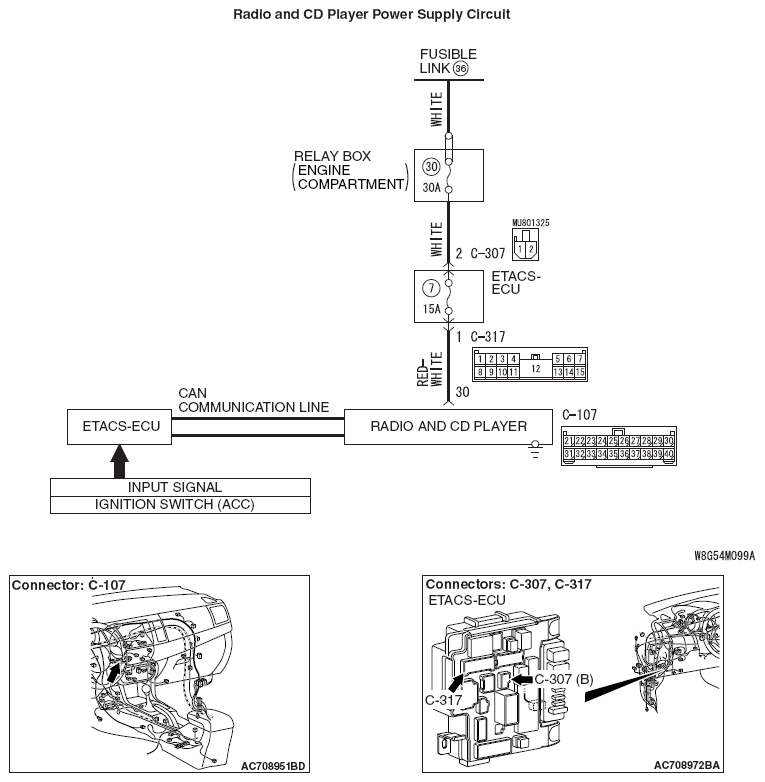

Fig 1: Radio & CD Player Power Supply Circuit Diagram
