Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

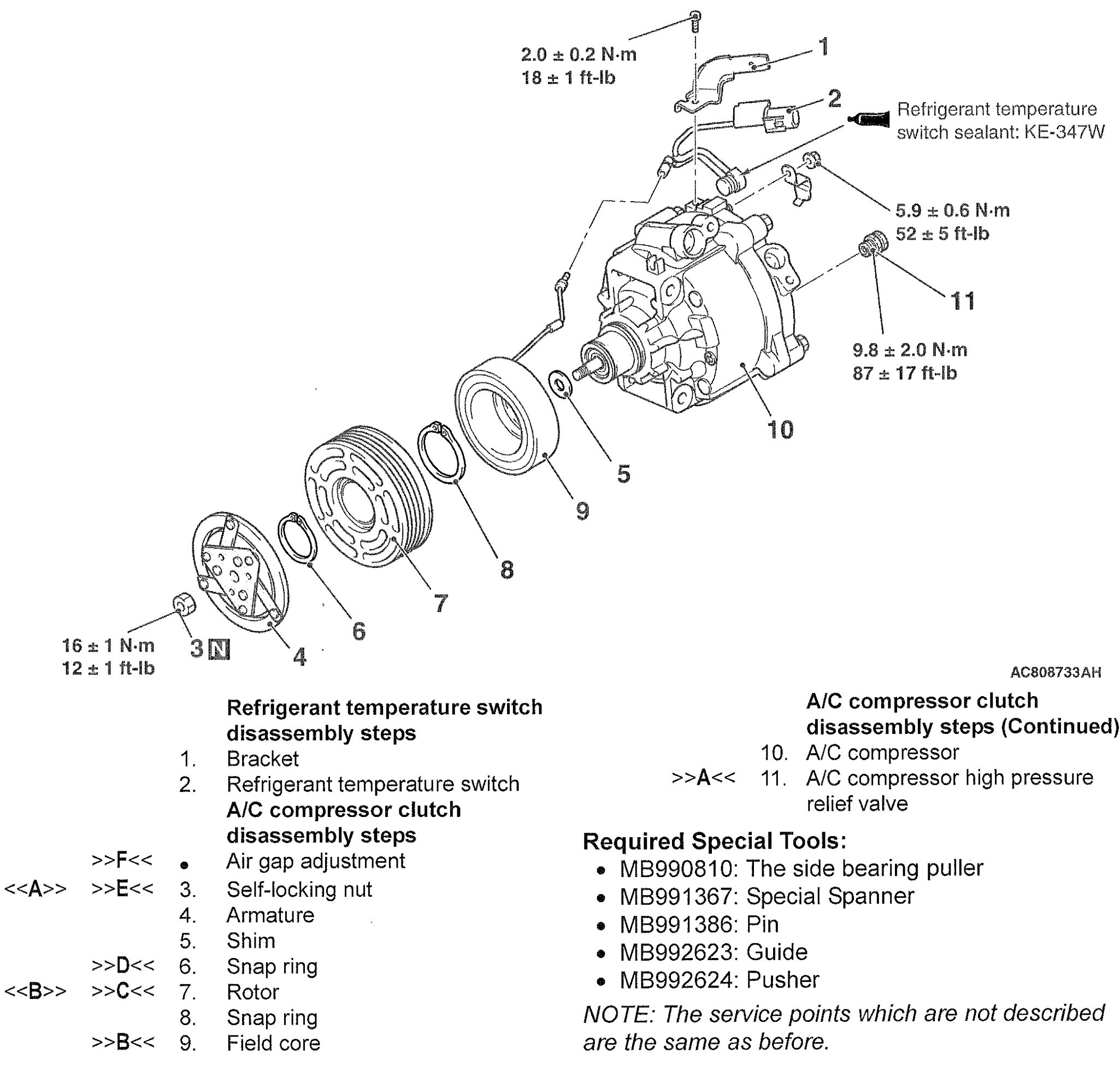

Fig 1: Disassembly/Assembly Of A/C Compressor Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990810: The side bearing puller
MB991367: Special Spanner
MB991386: Pin
MB992623: Guide
MB992624: Pusher
