>>E<< Self-Locking Nut Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Using a special tool, as when removing the nut, secure the armature and tighten the self-locking nut.

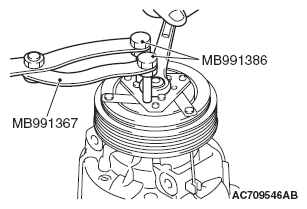

Fig 1: Tightening Self-Locking Nut
G06670728Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
