INSPECTION PROCEDURE 3: The Compressor Does Not Work: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

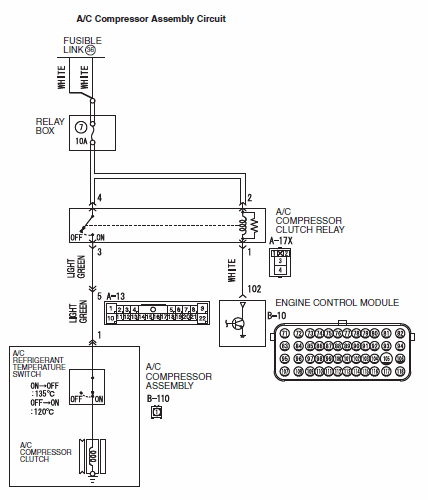

Fig 1: A/C Compressor Assembly Circuit
G00527905Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

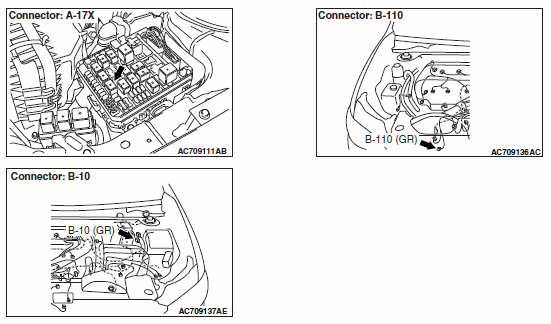

Fig 2: Locating A/C Compressor Assembly Connectors
G00527906Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
