Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If a fluid leakage is present in the area around the oil pan, clean around the oil pan. After cleaning, warm up the engine. Only if a fluid leakage is present in the area around the oil pan again, replace the oil pan assembly.

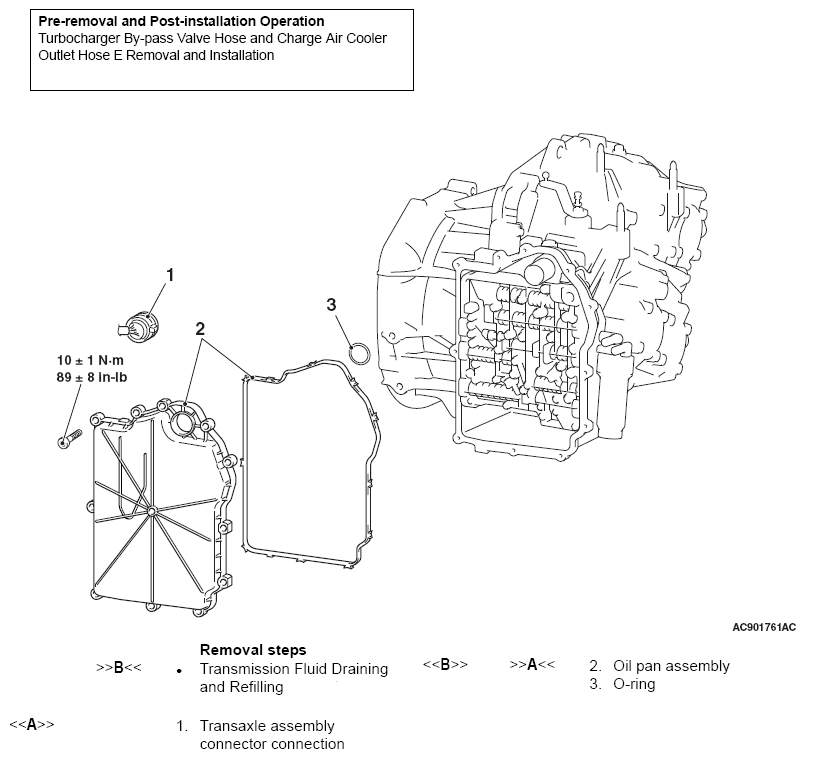

Fig 1: Oil Pan Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
