Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not refill the fluid when replacing the transaxle assembly and the oil cooler with new ones at the same time.

NOTE:

The new transaxle assembly is filled with 7.6 dm³ (8.0 qt) of the fluid (including the oil cooler).
The transaxle assembly has a sealed structure, and the fluid does not drain out from parts other than the oil cooler hose.

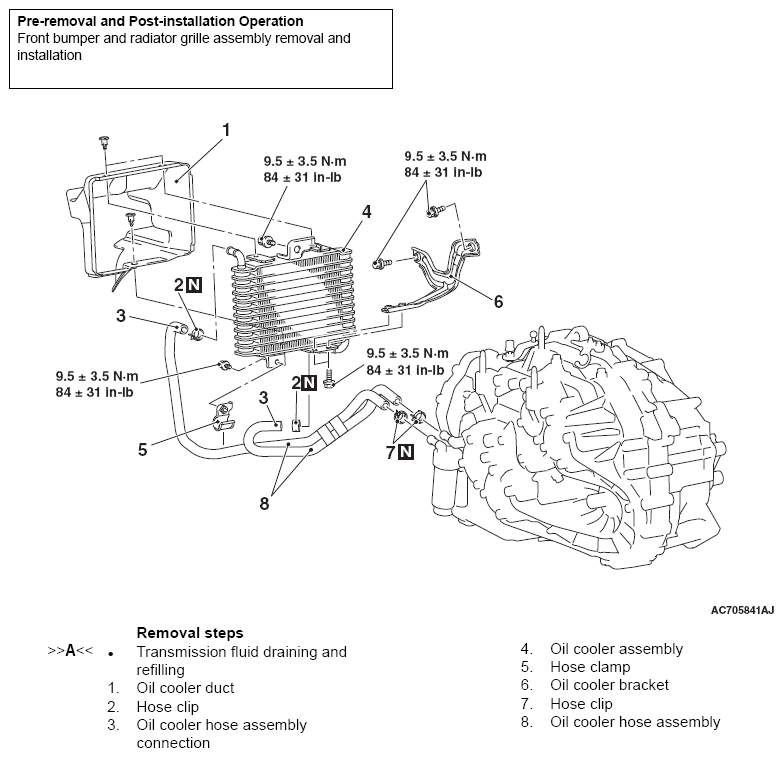

Fig 1: Oil Cooler Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
