Inspection Procedure 3: No Sound Is Heard From One Of The Speakers < Vehicles With Audio Amplifier >: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more).

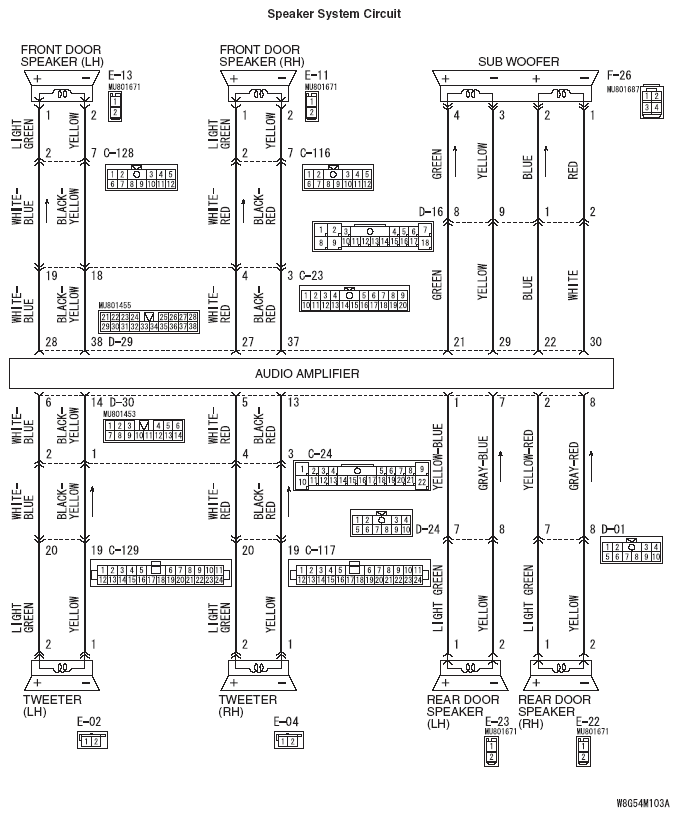

Fig 1: Speaker System Circuit Diagram
G05396972Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

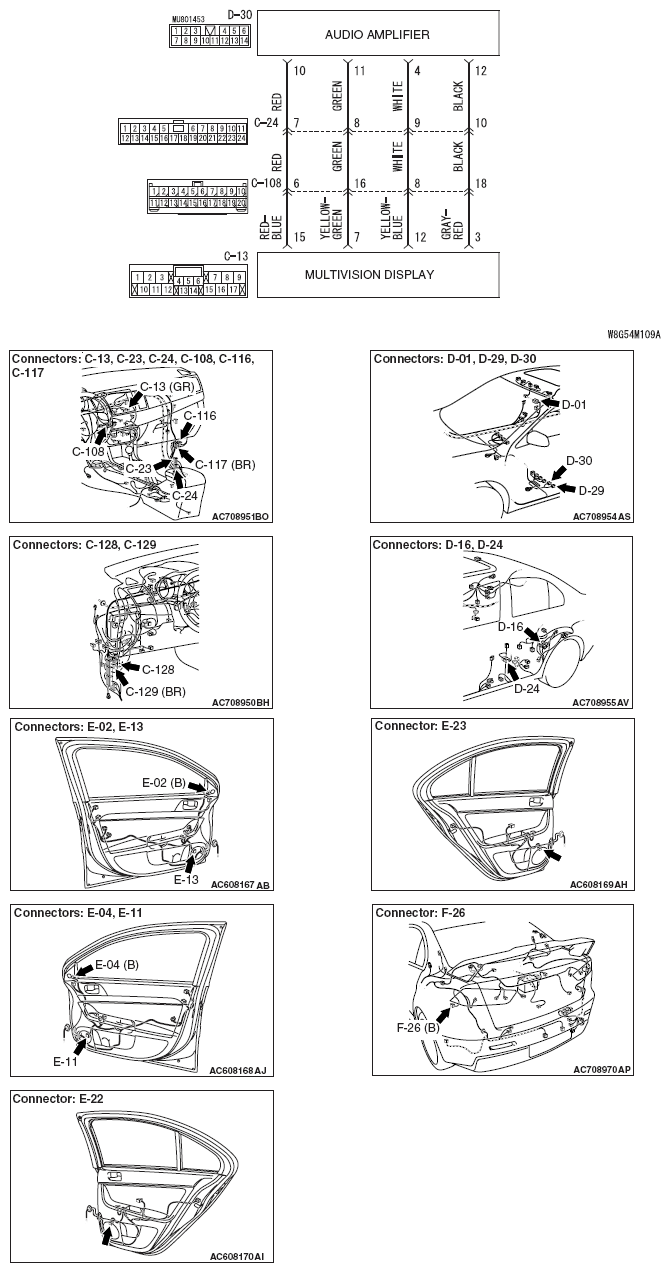

Fig 2: Identifying Speaker System Connector Location
G05397072Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
