Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical <2.0L Turbo> - Lancer >> Timing Chain >> Removal And Installation >> Notes

Removal And Installation: Notes

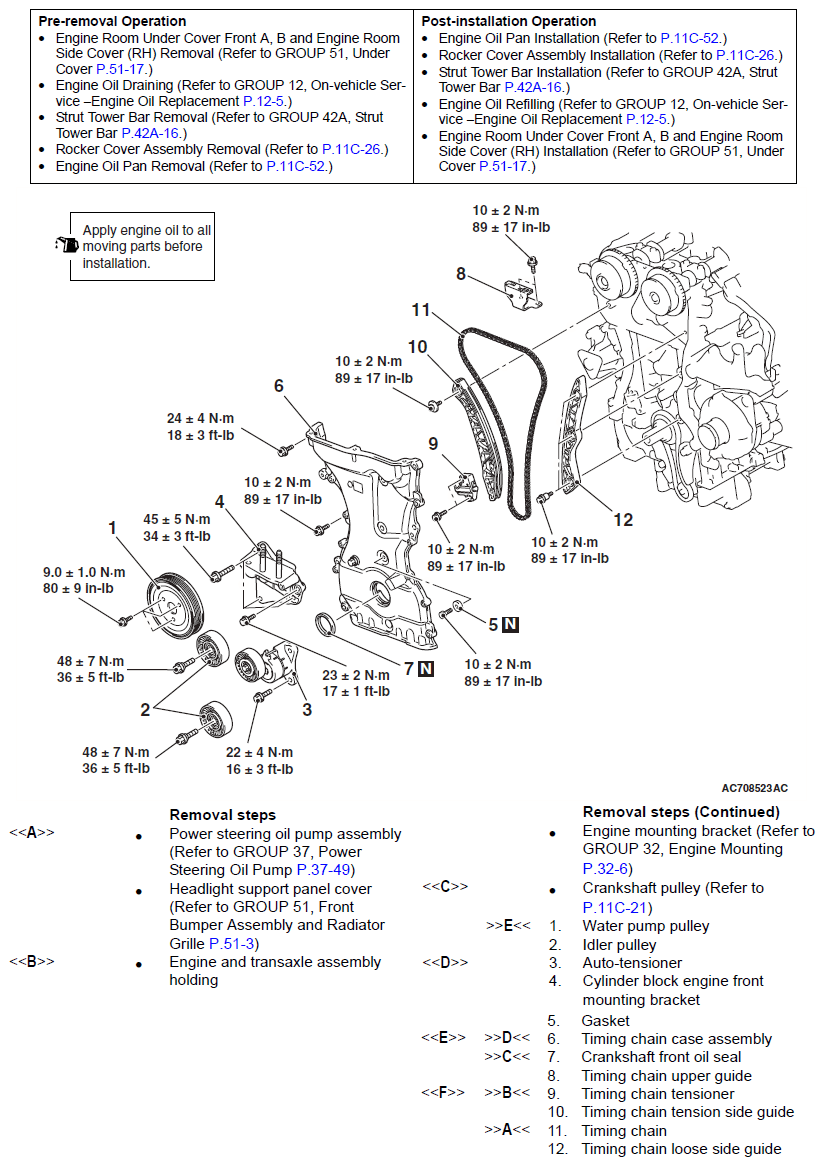

Fig 1: Timing Chain Replacement Components With Torque Specifications
G06671242Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
