Removal And Installation: Notes

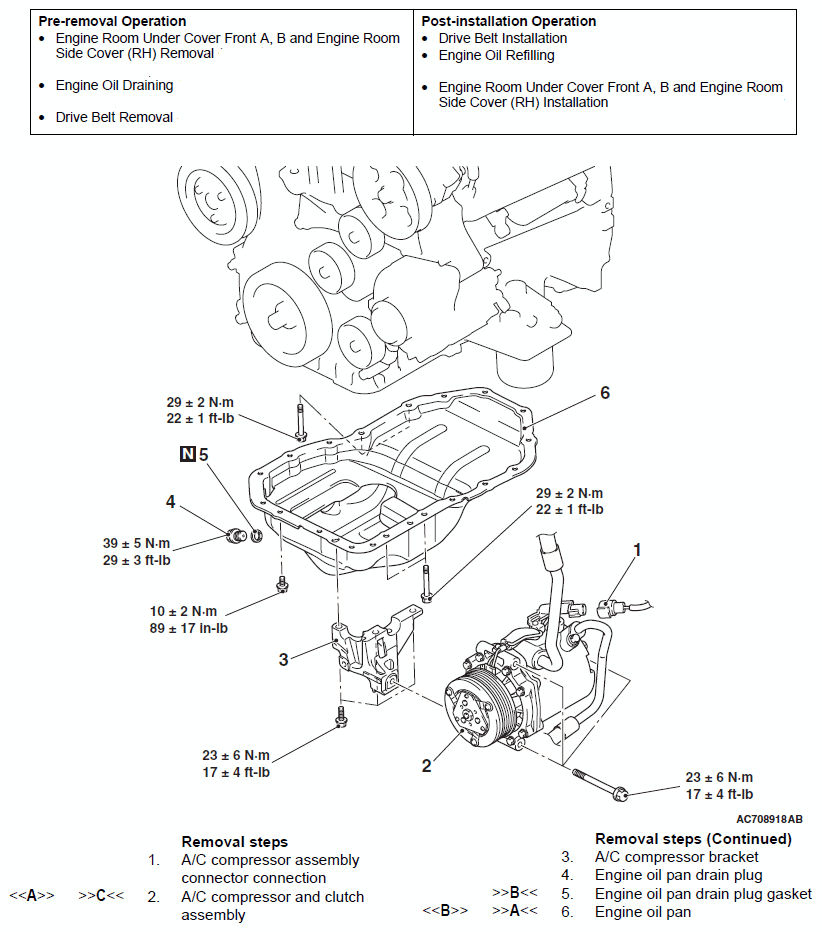

Fig 1: Oil Pan Replacement Components With Torque Specifications
G06671204Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
