>>A<< Engine Assembly/Engine Mounting Bracket Installation

  1. Place the engine assembly below the lifted vehicle.
  2. Install the engine assembly, being careful not to pinch the cables, hoses, or wiring harness connectors.
  3. Set special tool MB991454 and a chain block to the engine assembly.
    CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.
  4. Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mounting bracket while adjusting the position of the engine.
  5. Remove the chain block.

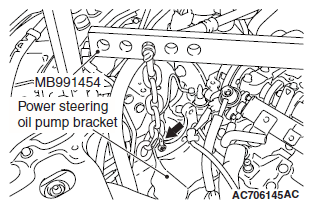

    Fig 1: Identifying Power Steering Oil Pump Bracket To Special Tool MB991454
    G06671267Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Holding Engine Assembly With Chain Block Using Special Tool MB991454
    G06671268Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. Install special tool MB991928 or MB991895 which is used during installation of transaxle assembly to hold the engine assembly (Refer to TRANSAXLE ASSEMBLY .)
  7. Remove the garage jack.

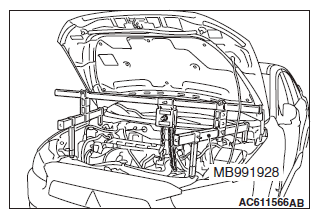

    Fig 3: Supporting Engine Assembly Using Special Tool MB991928
    G06671269Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

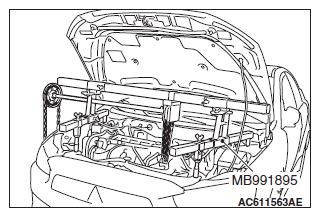

    Fig 4: Supporting Engine Assembly Using Special Tool MB991895
    G06671270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
