>>A<< Crankshaft Rear Oil Seal Case Assembly Installation

  1. Remove all the traces of sealant adhering to the cylinder block and ladder frame using a remover or others. Then, degrease them using.
  2. Apply the sealant without any gap to the cylinder block and ladder frame as shown in the illustration, and install the crankshaft rear oil seal case assembly.

    Specified sealant: Three bond 1227D or equivalent

    NOTE: Install the crankshaft rear oil seal case assembly immediately after applying sealant.
  3. Apply a small amount of engine oil to the entire inner diameter of the crankshaft rear oil seal lip, and install the crankshaft rear oil seal case assembly.
    CAUTION: After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the engine oil or water to the sealant application area or start the engine.
  4. Tighten the crankshaft rear oil seal case assembly mounting bolts to the specified torque.

    Tightening torque: 10 ± 2 N.m (89 ± 17 in-lb)

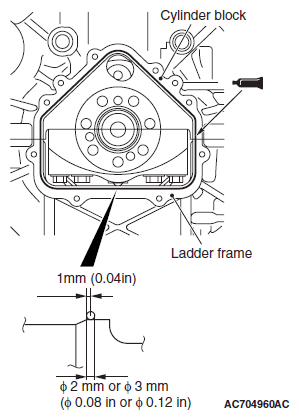

    Fig 1: Identifying Crankshaft Rear Oil Seal Case Assembly To Sealant Applying Area
    G06671213Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
