Removal And Installation: Notes

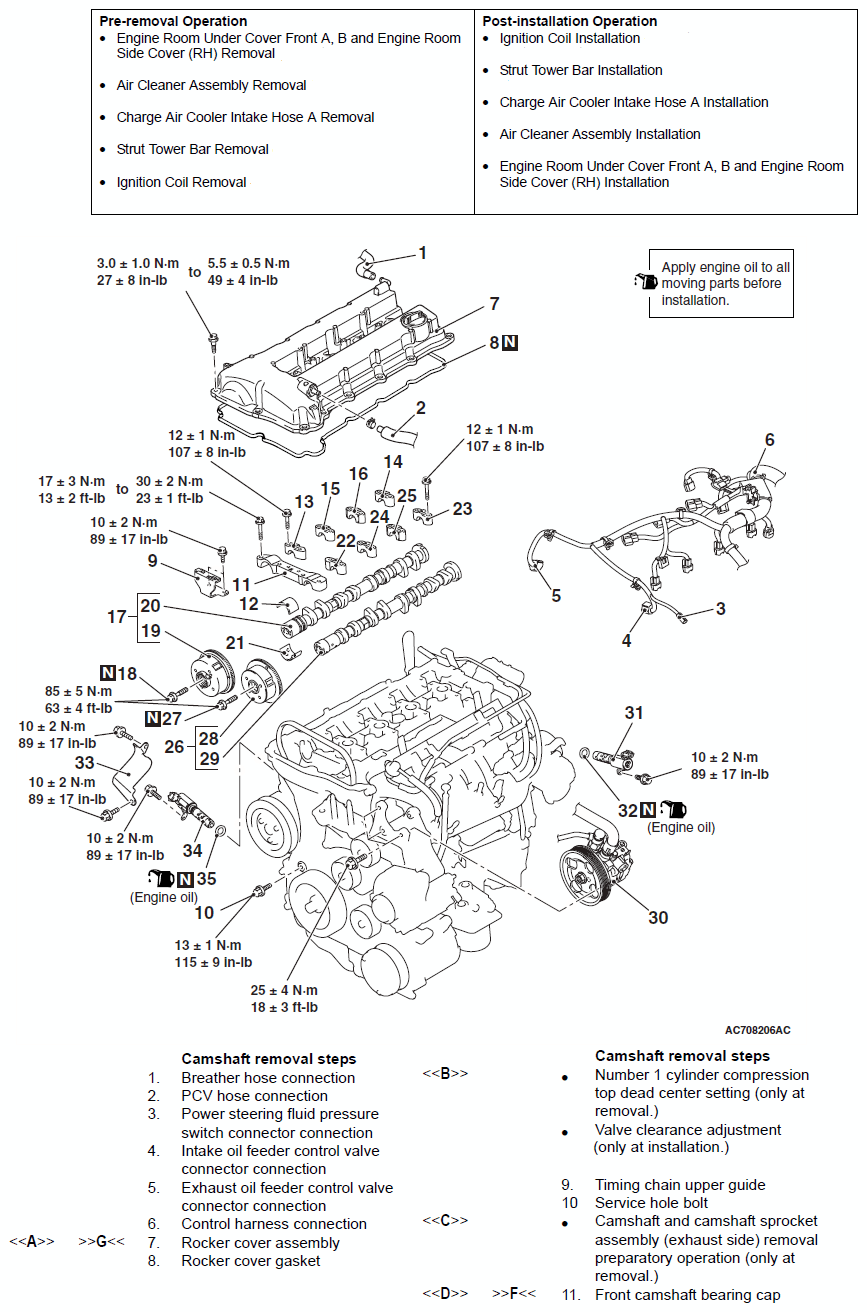

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 2)
G06671162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

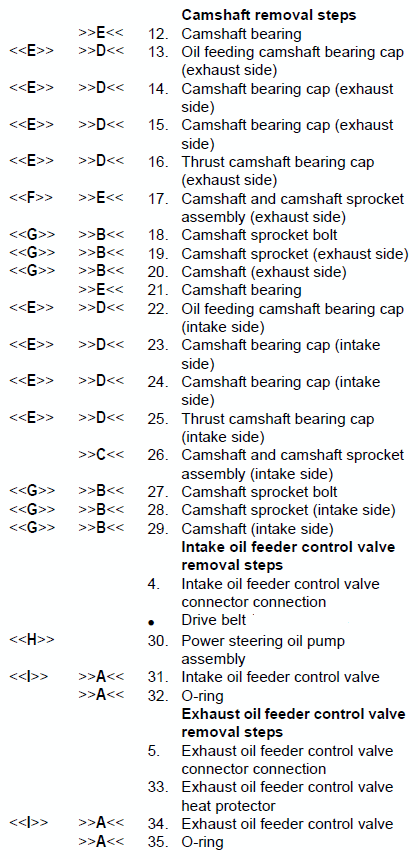

Fig 2: Identifying Camshaft Components (2 Of 2)
G06671163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
