Inspection Procedure 5: Audio illuminations does not work normally: Notes

CAUTION: Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

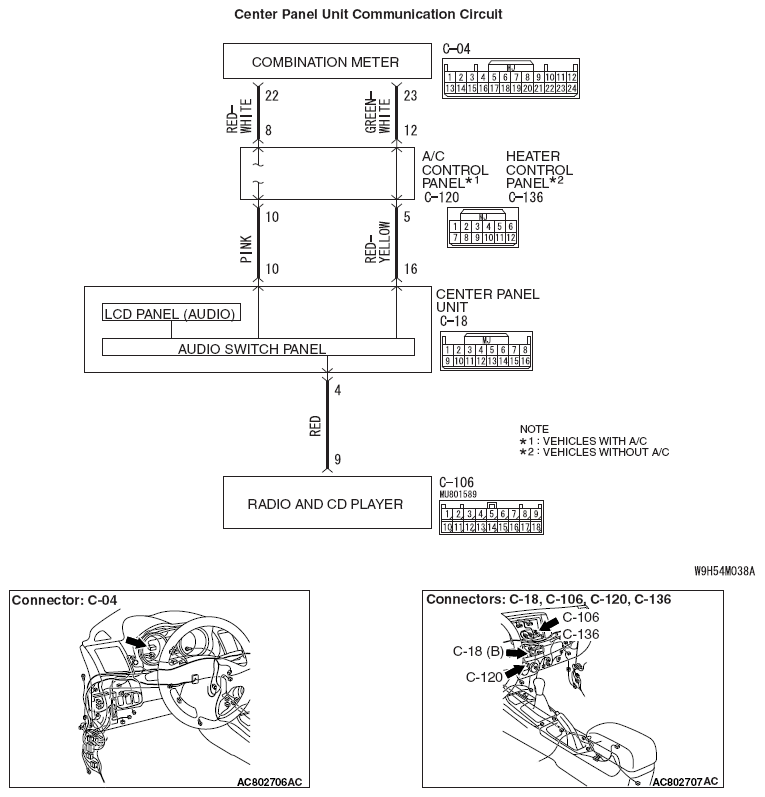

Fig 1: Center Panel Unit Communication Circuit Diagram
