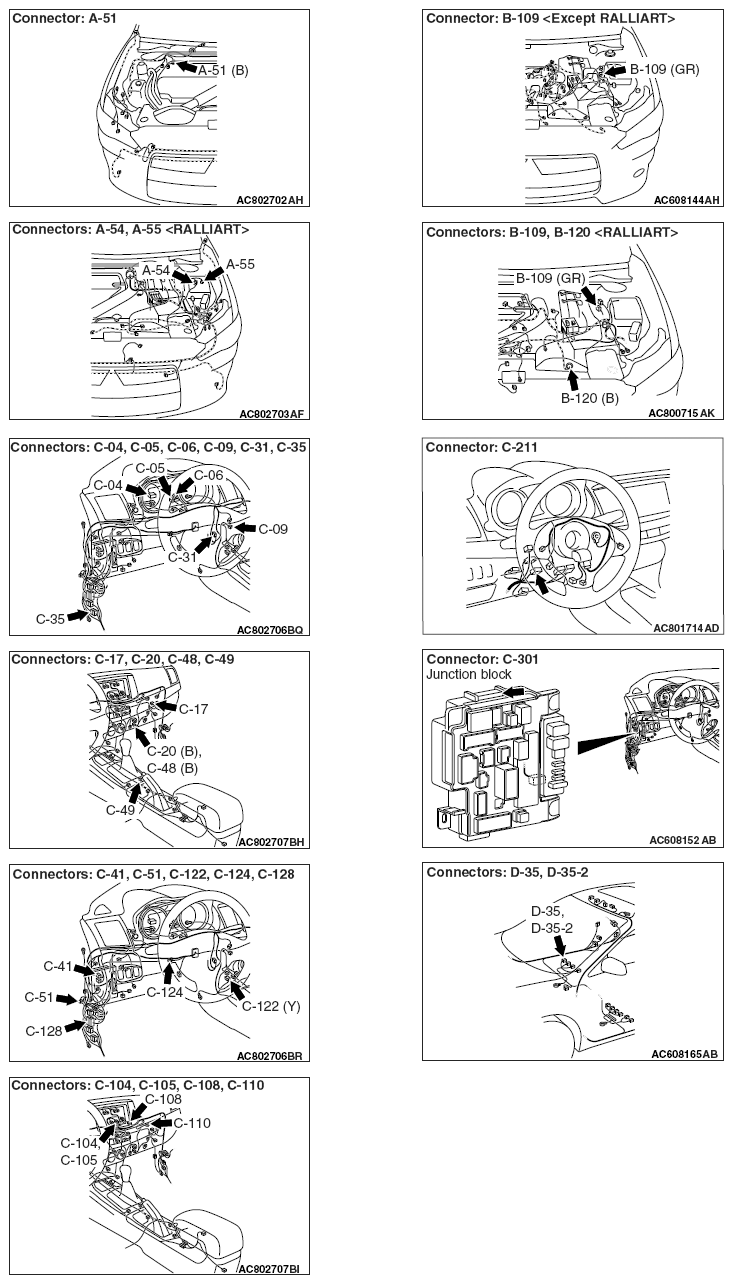

Can-Related Connector Position
CONNECTOR REFERENCE
| Connector No. | Connector name |
|---|---|
| A-51 | ASC-ECU |
| A-54 | Intermediate connector (Front wiring harness and control wiring harness combination) <RALLIART> |
| A-55 | Joint connector (CAN4) <RALLIART> |
| B-109 | Engine control module (ECM) |
| B-120 | Transaxle assembly <RALLIART> |
| C-04 | Combination meter |
| C-05 | Joint connector (CAN2) |
| C-06 | Joint connector (CAN1) |
| C-09 | Wireless control module (WCM) <Vehicles with WCM> |
| C-17 | Satellite radio tuner <vehicles with satellite radio> |
| C-20 | A/C-ECU <Vehicles with A/C> |
| C-31 | KOS-ECU <Vehicles with KOS> |
| C-34 | Data link connector |
| C-35 | Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) <RALLIART> |
| C-41 | Transaxle control module (TCM) <CVT> |
| C-48 | Heater control unit <Vehicles without A/C> |
| C-49 | Shift lever <RALLIART> |
| C-51 | AWC-ECU <RALLIART> |
| C-104 | Radio and CD player <Vehicles without MMCS> |
| C-105 | Intermediate connector (Instrument panel wiring harness and navigation wiring harness combination) |
| C-108 | CAN box unit <Vehicles with MMCS> |
| C-110 | Hands free module <Vehicles with hands-free cellular phone system> |
| C-122 | SRS-ECU |
| C-124 | Joint connector (CAN3) |
| C-128 | Intermediate connector (Instrument panel wiring harness and front wiring harness combination) |
| C-211 | Steering wheel sensor |
| C-301 | ETACS-ECU |
| D-35 | Front seat assembly (RH) |
| D-35-2 | Occupant classification-ECU |
