DIAGNOSTIC ITEM 4: Diagnose shorts in the ground to CAN-C bus line: Notes

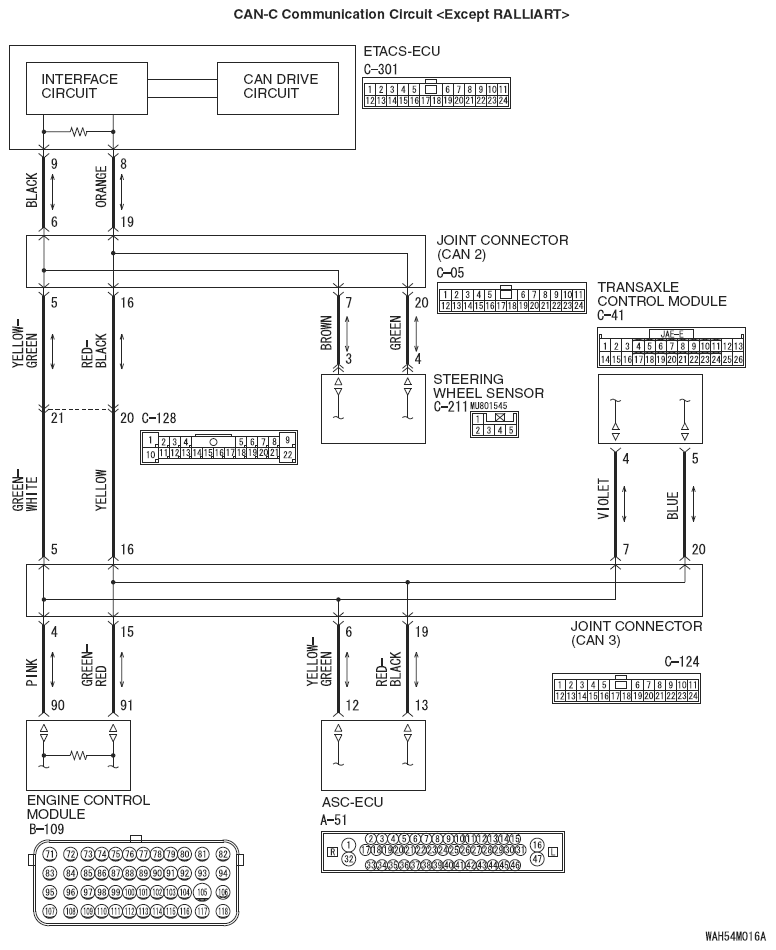

Fig 1: CAN-C Communication Circuit (Except Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

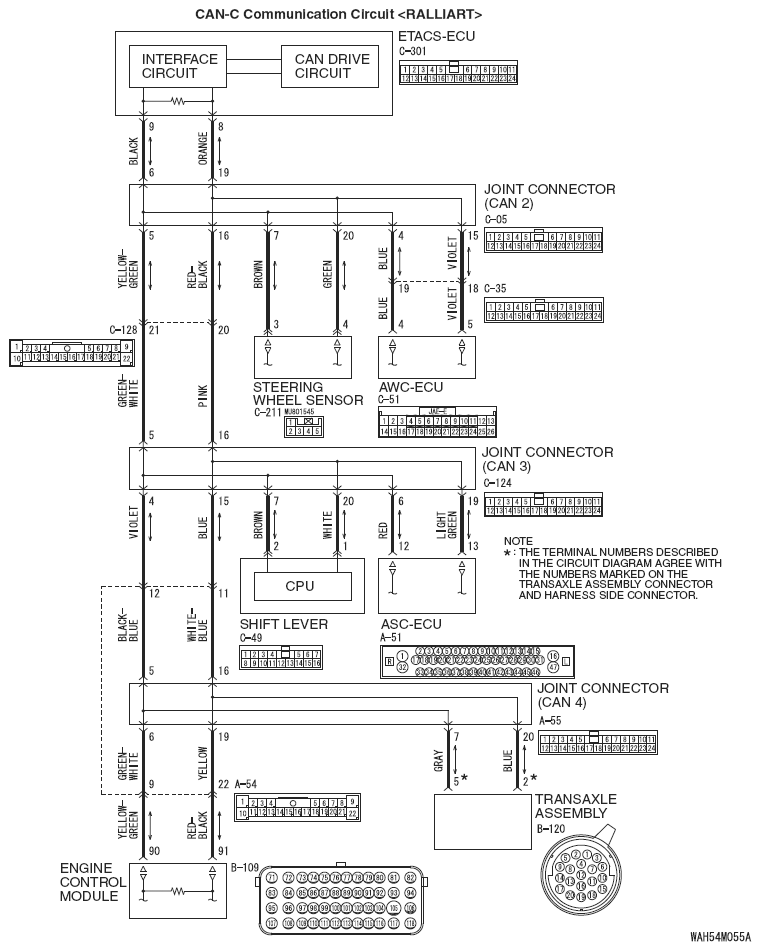

Fig 2: CAN-C Communication Circuit (Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

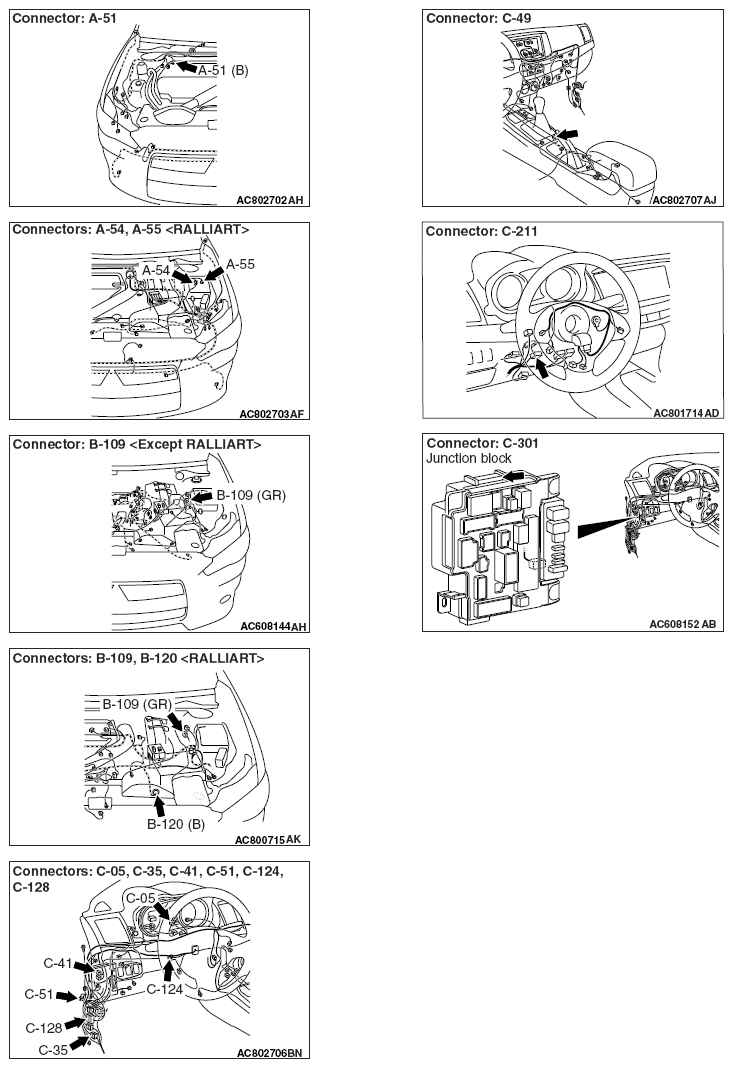

Fig 3: Identifying Connector A-51, C-49, C-301 Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
