Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

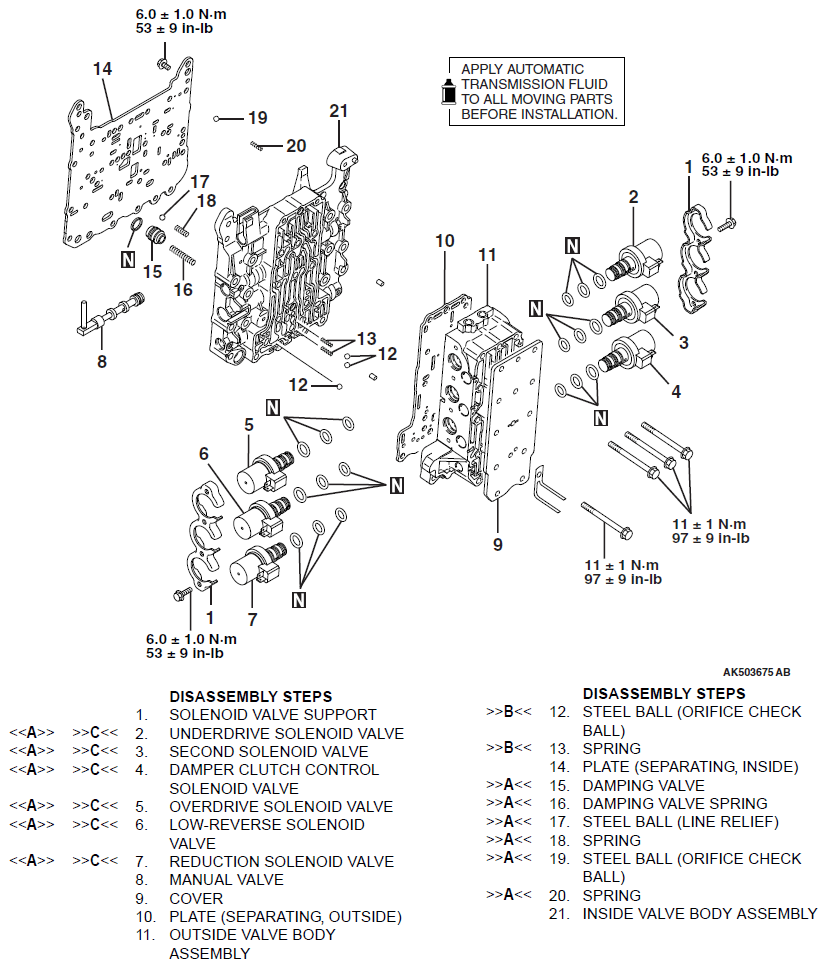

Fig 1: Disassembling View Of Valve Body With Torque Specifications (1 Of 2)
G06686062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

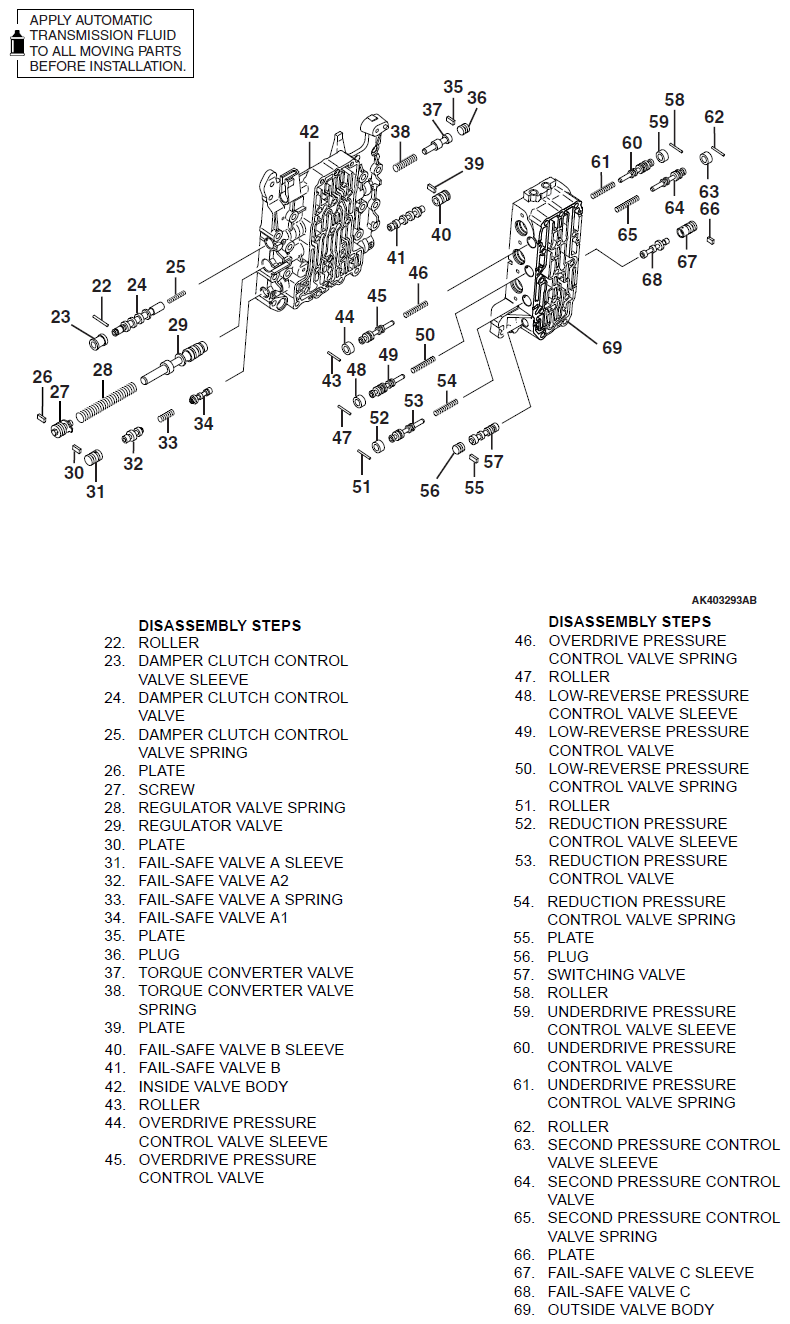

Fig 2: Disassembling View Of Valve Body (2 Of 2)
G06686063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
