INSPECTION PROCEDURE 2: Power supply circuit.; INSPECTION PROCEDURE 3: Odometer and trip meter are not displayed.; INSPECTION PROCEDURE 4: No needle meters work.; INSPECTION PROCEDURE 5: When the ignition switch is turned to the ON position, the indicator and warning lights do not illuminate: Diagnosis

Required Special Tools:

• MB991223: Harness set
• MB992006: Extra Fine Probe

1. STEP 1. Check combination meter connector C-04 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is combination meter connector C-04 in good condition?

   1. YES  : Go to Step 2.
   2. NO  : Repair or replace the component(s). Refer to HARNESS CONNECTOR INSPECTION . The combination meter works normally.
   Fig 1: Locating Combination Meter Connector C-04

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Measure at combination meter connector C-04 in order to power supply circuit to combination meter (battery power supply).
   1. Disconnect combination meter connector C-04, and measure at the wiring harness side.
      Fig 2: Locating Combination Meter Connector C-04

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   2. Measure the voltage between terminal 10 and ground.
      • The voltage should measure approximately 12 volts (battery positive voltage).

   Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

   1. YES  : Go to Step 4.
   2. NO  : Go to Step 3.
   Fig 3: Measuring Voltage Between Combination Meter Connector C-04 Terminal 10 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. STEP 3. Check the wiring harness between combination meter connector C-04 (terminal 10) and the battery.
   • Check the power supply line for open circuit and short circuit.

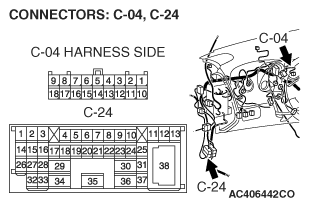

   Fig 4: Locating Combination Meter Connector C-04 And Intermediate Connector C-24

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: Also check intermediate connector C-24 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-24 is damaged, repair or replace. Refer to HARNESS CONNECTOR INSPECTION .

   Q: Is the wiring harness between combination meter connector C-04 (terminal 10) and the battery in good condition?

   1. YES  : Retest the system.
   2. NO  : Repair the wiring harness. Check that the combination meter is normally.
   3. STEP 4. Measure the voltage at combination meter connector C-04 in order to power supply circuit to combination meter (IG1 power supply).
      1. Disconnect combination meter connector C-04, and measure at the wiring harness side.
      2. Turn the ignition switch to "ON" position.
      Fig 5: Locating Combination Meter Connector C-04

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   4. Measure the voltage between terminal 11 and ground.
      • The voltage should measure approximately 12 volts (battery positive voltage).

   Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

   1. YES  : Go to Step 6.
   2. NO  : Go to Step 5.
   Fig 6: Measuring Voltage Between Combination Meter Connector C-04 Terminal 11 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. STEP 5. Check the wiring harness between combination meter connector C-04 (terminal 11) and the ignition switch (IG1).
   • Check the power supply line for open circuit and short circuit.
   Fig 7: Locating Combination Meter Connector C-04 And Ignition Switch Connector C-01

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: Also check joint connector (2) C-01, junction block connector C-202 and C-215 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If inspecting joint connector (2) C-01 or junction block connector C-202 or C-215 is damaged, repair or replace. Refer to HARNESS CONNECTOR INSPECTION .

   Q: Is the wiring harness between combination meter connector C-04 (terminal 11) and the ignition switch (IG1) in good condition?

   1. YES  : Refer to IGNITION SWITCH DIAGNOSIS .
   2. NO  : Repair the wiring harness. Check that the combination meter is normally.
   Fig 8: Locating Junction Block Connector C-202 Or C-215

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. STEP 6. Measure the resistance at combination meter connector C-04 in order to the ground circuit to the combination meter.
   1. Disconnect combination meter connector C-04, and measure at the wiring harness side.
      Fig 9: Locating Combination Meter Connector C-04

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   2. Measure the resistance value between terminal 1 and ground.
      • The resistance should be 2 ohms or less.

      Q: Is the measured resistance 2 ohms or less?

      1. YES  : Go to Step 8.
      2. NO  : Go to Step 7.
   Fig 10: Measuring Resistance Between Combination Meter Connector C-04 Terminal 1 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. STEP 7. Check the wiring harness between combination meter connector C-04 (terminal 1) and ground.
   • Check the ground wire for open circuit.

   Q: Is the wiring harness between combination meter connector C-04 (terminal 1) and ground in good condition?

   1. YES  : Retest the system.
   2. NO  : Repair the wiring harness. Check that the combination meter is normally.
   Fig 11: Locating Combination Meter Connector C-04

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. STEP 8. Retest the system.

Q: Is the check result satisfactory?

1. YES  : The procedure is complete. (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ).
2. NO  : Replace the combination meter.
