DTC U1434: Failure information on TPMS-ECU: Diagnosis
Required Special Tools:

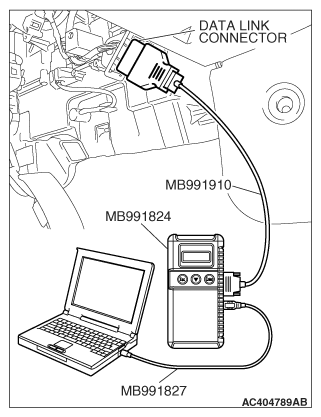

- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V. C. I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
- STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
Use scan tool MB991958 to diagnose the CAN bus lines.
CAUTION: To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to "ON" position.
- Diagnose the CAN bus line.
- Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result satisfactory?
- YES : Go to Step 2.
- NO : Repair the CAN bus lines (Refer to CAN BUS DIAGNOSTIC CHART ).
- STEP 2. Using scan tool MB991958, read the TPMS diagnostic trouble code.
Check if an TPMS diagnostic trouble code is set.
- Turn the ignition switch to "ON" position.
- Read the diagnostic trouble code.
- Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?
- YES : Diagnose the TPMS by referring to DIAGNOSTIC TROUBLE CODE CHART .
- NO : Go to Step 3.
- STEP 3. Recheck for diagnostic trouble code.
Check that the diagnostic trouble code is not reset.
- Turn the ignition switch to "ON" position.
- Erase the diagnostic trouble code.
- Turn the ignition switch to the "LOCK" (OFF) position.
- Turn the ignition switch to "ON" position.
- Read the diagnostic trouble code.
- Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normally?
- YES : The procedure is complete.
- NO : Replace the combination meter.
