Inspection Procedure 4: Horns do not sound while the theft-alarm system is triggered.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal

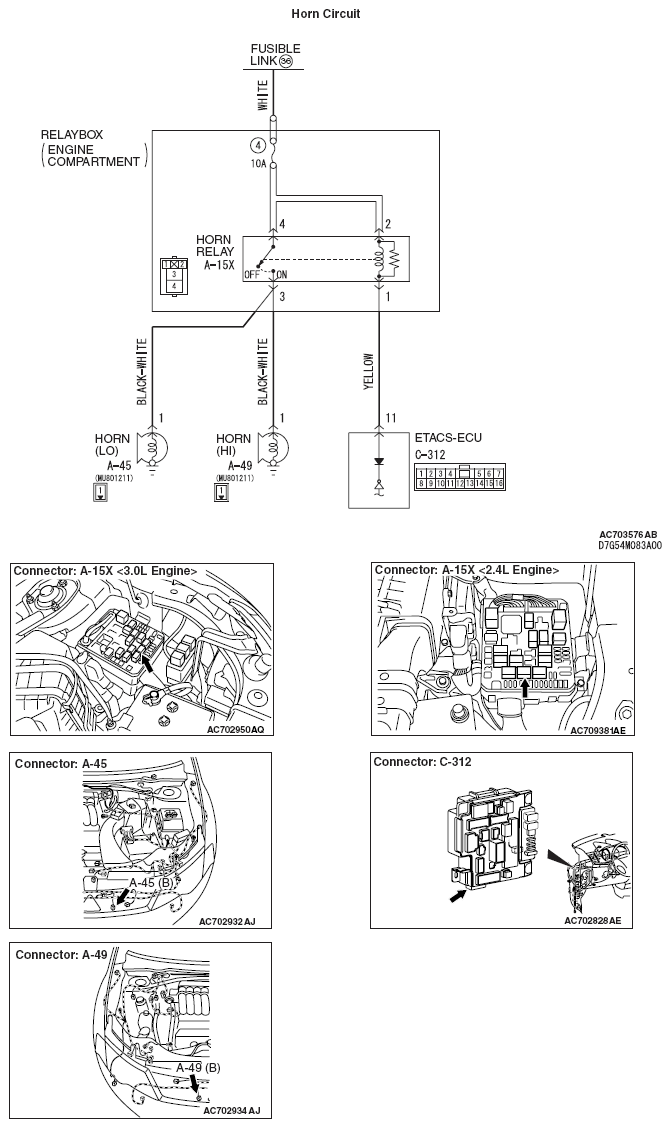

Fig 1: Horn Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
