Inspection Procedure 1: The theft-alarm is not armed (the theft-alarm indicator does not illuminate).: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

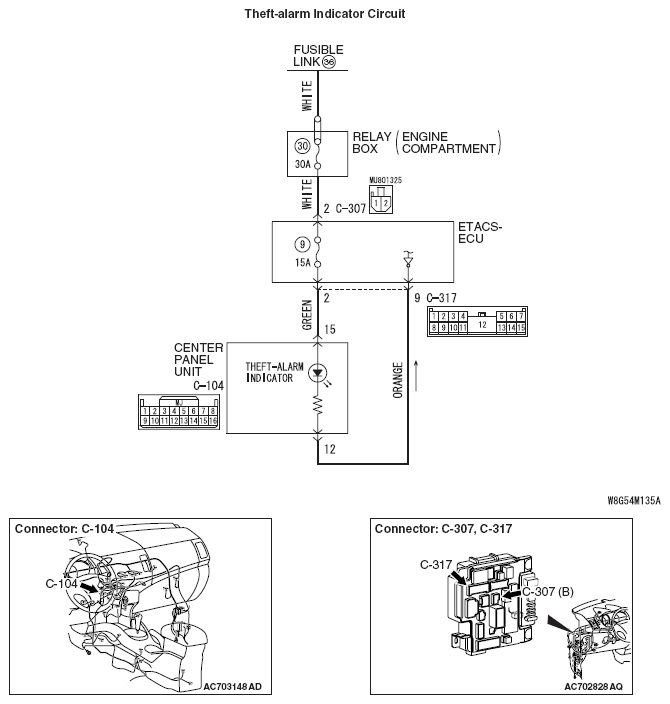

Fig 1: Theft-alarm Indicator Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
