Malfunction of ETACS-ECU power supply circuit: Notes

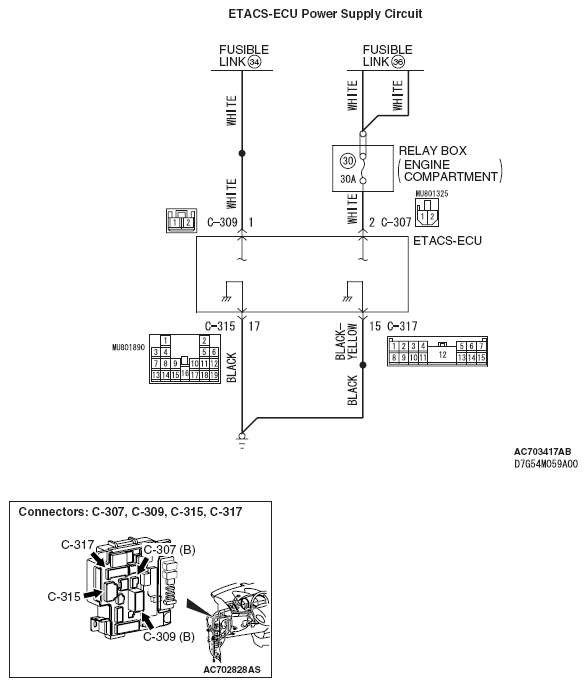

Fig 1: ETACS-ECU Power Supply Circuit Diagram

G05434813

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
