Inspection Procedure 8: ETACS-ECU does not receive any signal from the rear door switch (RH).: Notes

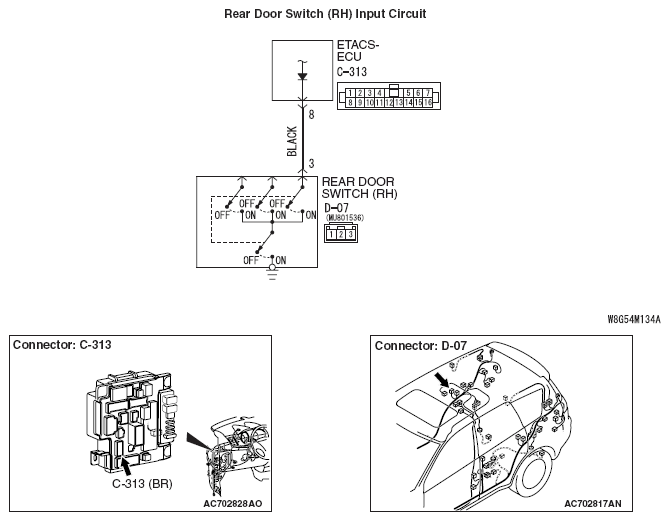

Fig 1: Rear Door Switch (RH) Input Circuit Diagram

G05434831

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
