Inspection Procedure 6: ETACS-ECU does not receive any signal from the front door switch (RH).: Notes

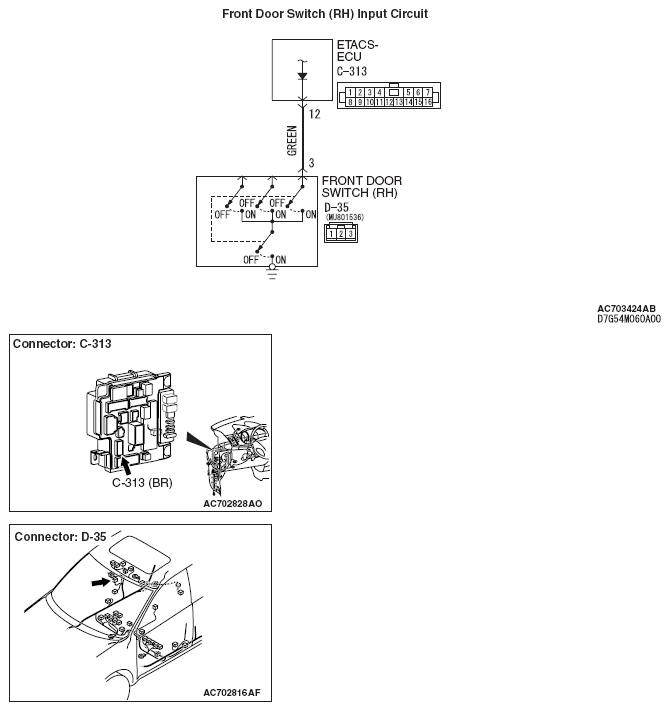

Fig 1: Front Door Switch (RH) Input Circuit Diagram

G05434829

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
