Inspection Procedure 12: ETACS-ECU does not receive any signal from the hazard warning light switch.: Notes

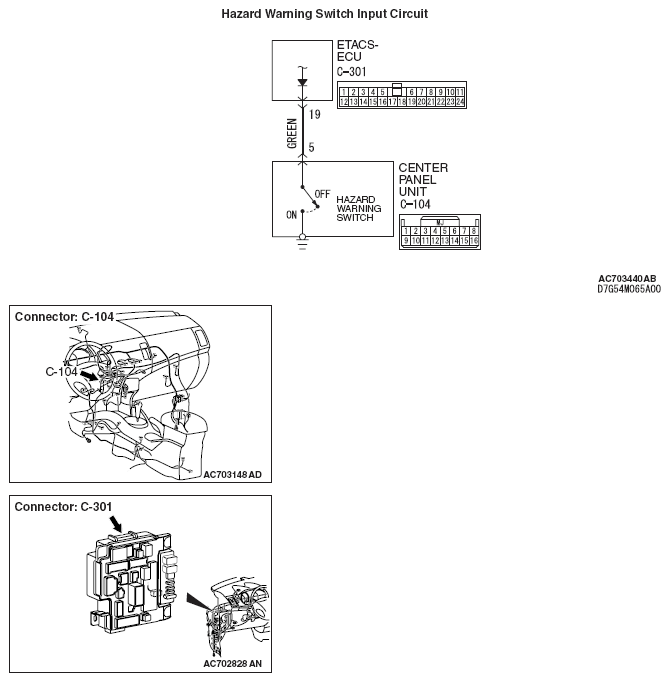

Fig 1: Hazard Warning Switch Input Circuit Diagram
G05434836Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
