Removal And Installation

CAUTION: When replacing the ETACS-ECU, use the ETACS-ECU to which the chassis number is written and the coding is implemented. Also, if diagnostic trouble code B1761 "Chassis No. not programmed" or B222C "Coding not completed" is set to the ETACS-ECU, replace with the ETACS-ECU to which the chassis number same as that of vehicle is written and the coding is implemented.

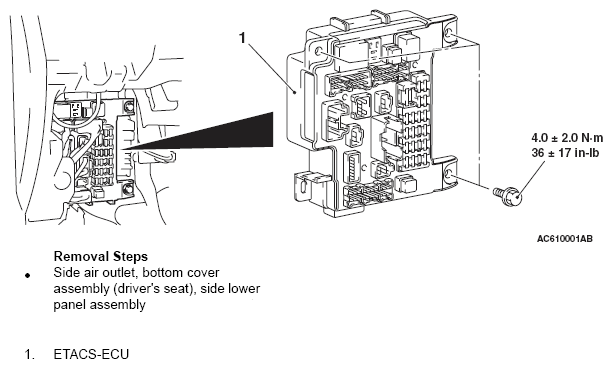

Fig 1: ETACS-ECU Replacement Components With Torque Specifications
G05434838Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
