Removal And Installation

WARNING:
  • Before removing the air bag module, refer to SERVICE PRECAUTIONS .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

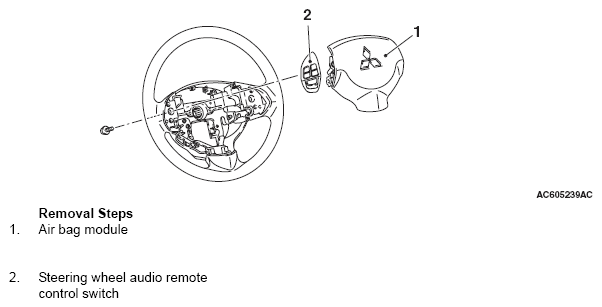

    Fig 1: Identifying Steering Wheel Audio Remote Control Switch Components
    G05434675Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
