Inspection Procedure 3: The illumination of the steering remote control switch does not come on.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

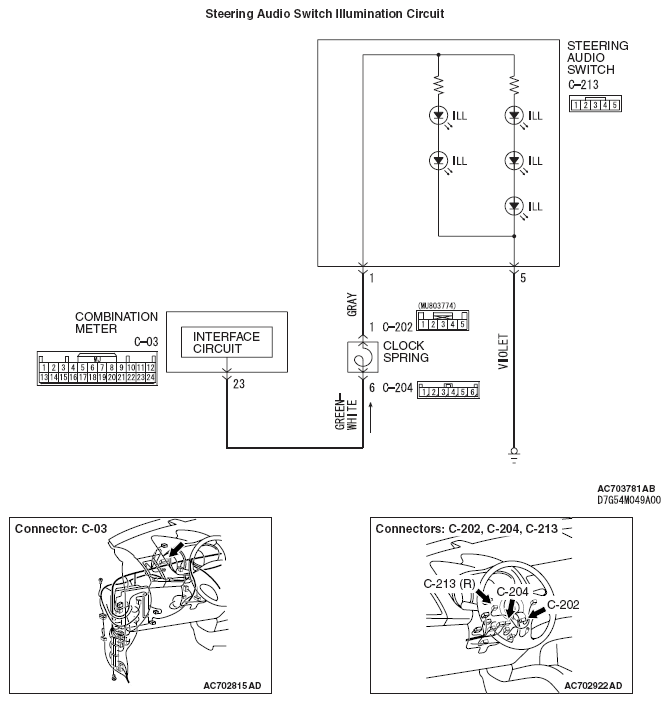

Fig 1: Steering Audio Switch Illumination Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
