Inspection Procedure 2: No sound is heard. < Vehicles with audio amplifier >: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

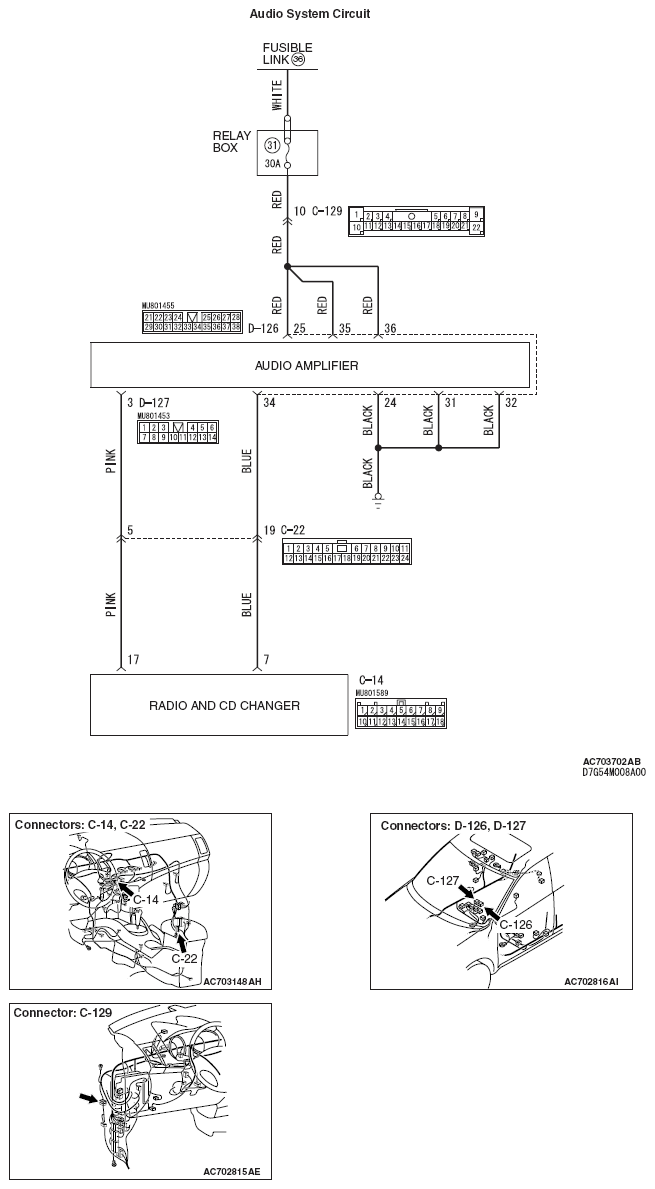

Fig 1: Audio System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
