Inspection Procedure 1: Power is not turned ON when the power switch is turned ON.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

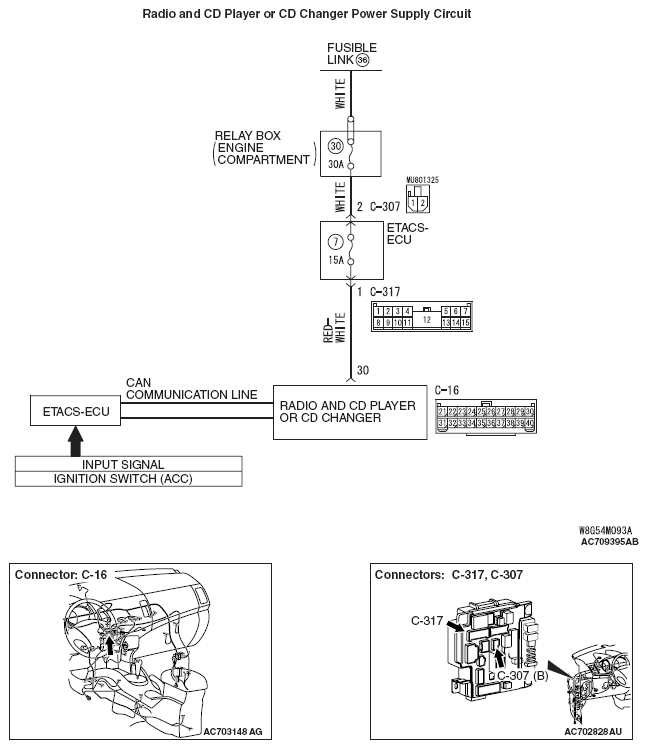

Fig 1: Radio And CD Player Or CD Changer Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
