General Information

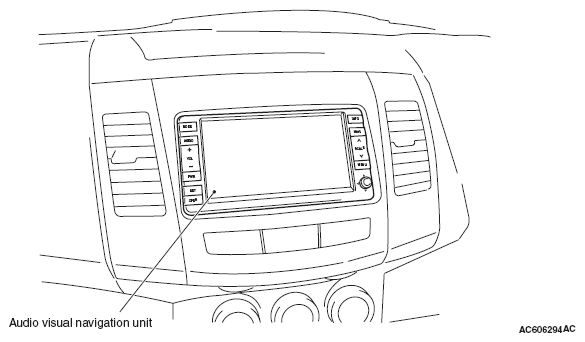

For Mitsubishi multi-communication system (MMCS), the audio visual navigation (7-inch liquid crystal display of wide 2 DIN size) with hard disk drive (30 GB) and the CD/DVD drive is established.
The audio and video adapter has been established to the center tray in order to connect visual equipment such as game machine and video player.
DISPLAY CONTENT REFERENCE
| Display (function) | Content | ||
|---|---|---|---|
| Navigation | Displays the navigation functions including the map display, search, guidance, information search, Carpool/HOV lane. | ||
| Vehicle position information | Displays the position information of current location. (Longitude and latitude, altitude, GPS reception status) | ||
| CD/DVD | Plays the CD or DVD inserted to the drive (for MP3/WMA) | ||
| Music server | Plays back the music data on hard disk drive, and records the music CD. | ||
| Radio | Displays the receiving station information. Also, the operation of receiving channel can be performed. | ||
| Drive information | Displays the average fuel consumption, instantaneous fuel consumption, possible cruising distance, driving time, and lap time. | ||
| Environmental data | Displays the atmospheric pressure(1) and ambient temperature. | ||
| Maintenance information | Displays the maintenance information for engine oil, oil filter, tire rotation, clean air filer, and brake system. | ||
| A/C information | Displays the A/C information. | ||
| ETACS function customization | Function for ETACS-ECU customization | ||
| Calendar | Displays the calendar. | ||
|
NOTE:
|
|||
- The storage of very large map data is now possible, and the following contents have been adopted.
- Map type navigation
- NAVTEQ map database
- Map data stored in hard disc drive
- Most sophisticated LSI has been used as one for car navigation system.NOTE: *LSI stands for Large Scale Integration, and is a large-scale integrated circuit (IC) containing between 1, 000 and 100, 000 circuit elements.
- U.S. English, French, and Spanish are available to select.
- By attaching the hands free module, the hands free cellular phone system becomes available.
- By attaching the satellite radio tuner, the SIRIUS™ satellite radio broadcasting becomes available.
