Inspection Procedure 5: The screen is not normal in the navigation mode. (The displayed position of the vehicle mark deviates).: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more).

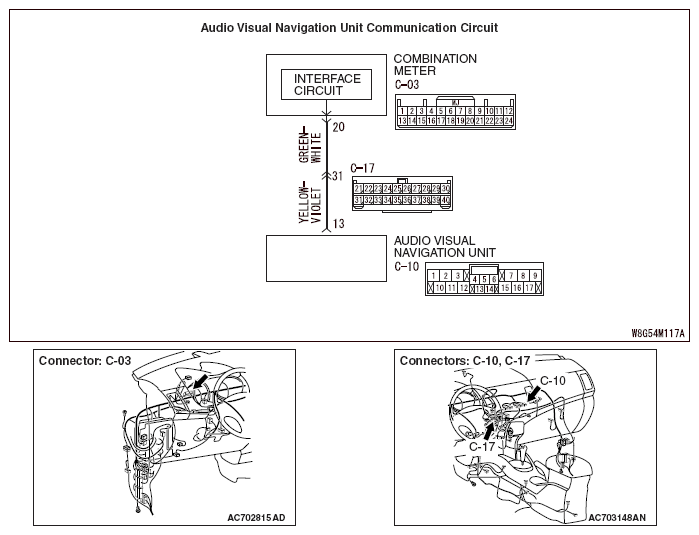

Fig 1: Audio Visual Navigation Unit Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
