Inspection Procedure 4: The navigation system can be operated while the vehicle is driven.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more).

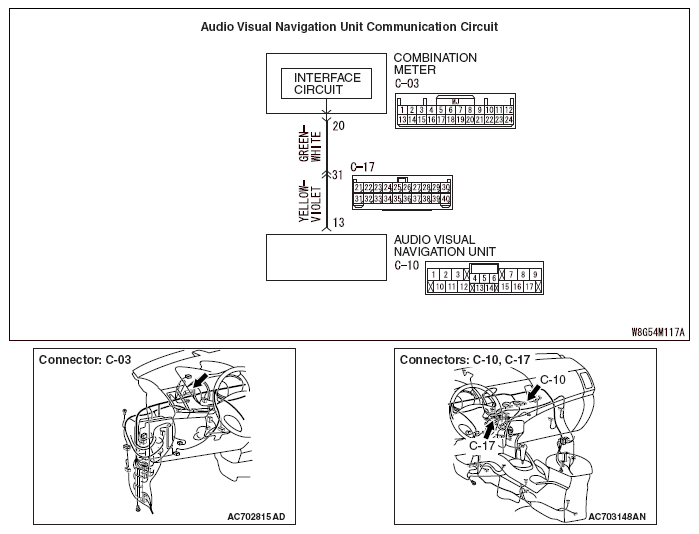

Fig 1: Audio Visual Navigation Unit Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
