Inspection Procedure 12: Check the CAN box unit power supply circuit.: Notes

CAUTION: Whenever the ECU is replaced, ensure that the power supply circuit and the grounding circuit are normal. (Check that the voltage is 10 V or more).

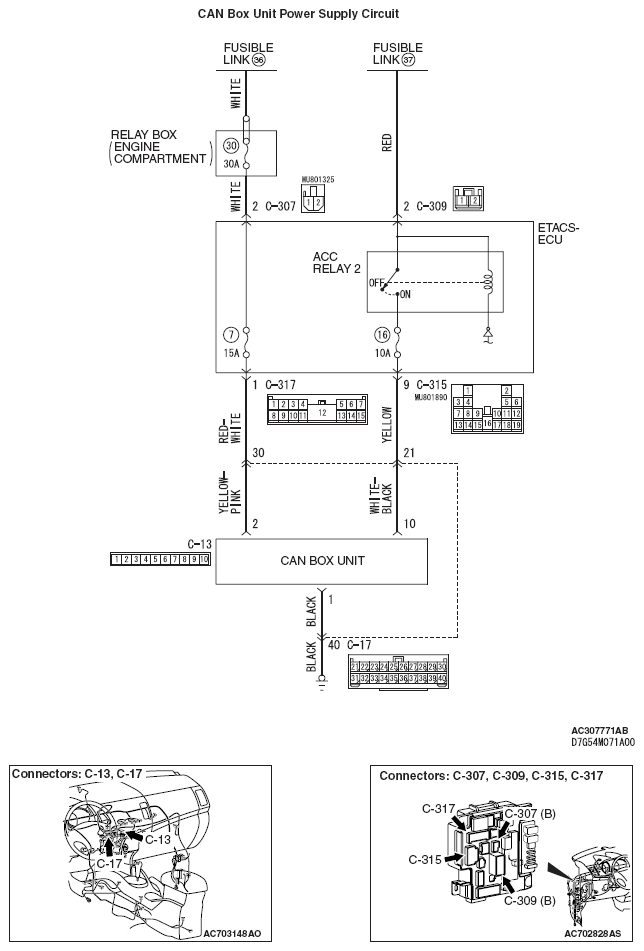

Fig 1: CAN Box Unit Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
