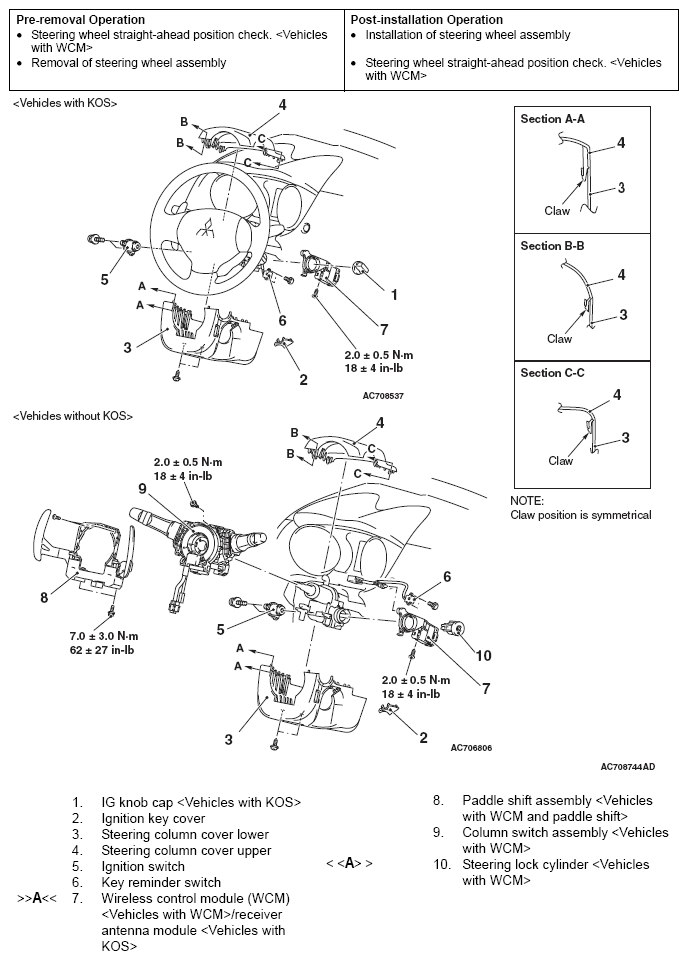

Removal And Installation: Notes
CAUTION:
Before removing the steering wheel assembly, refer to
SERVICE PRECAUTIONS
and AIR BAG MODULE(S) AND CLOCK SPRING
< Vehicles with WCM >.
CAUTION:
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to
STEERING WHEEL SENSOR CALIBRATION
) < Vehicles with WCM and ASC >.
