Inspection Procedure 1: Power supply circuit check.: Notes

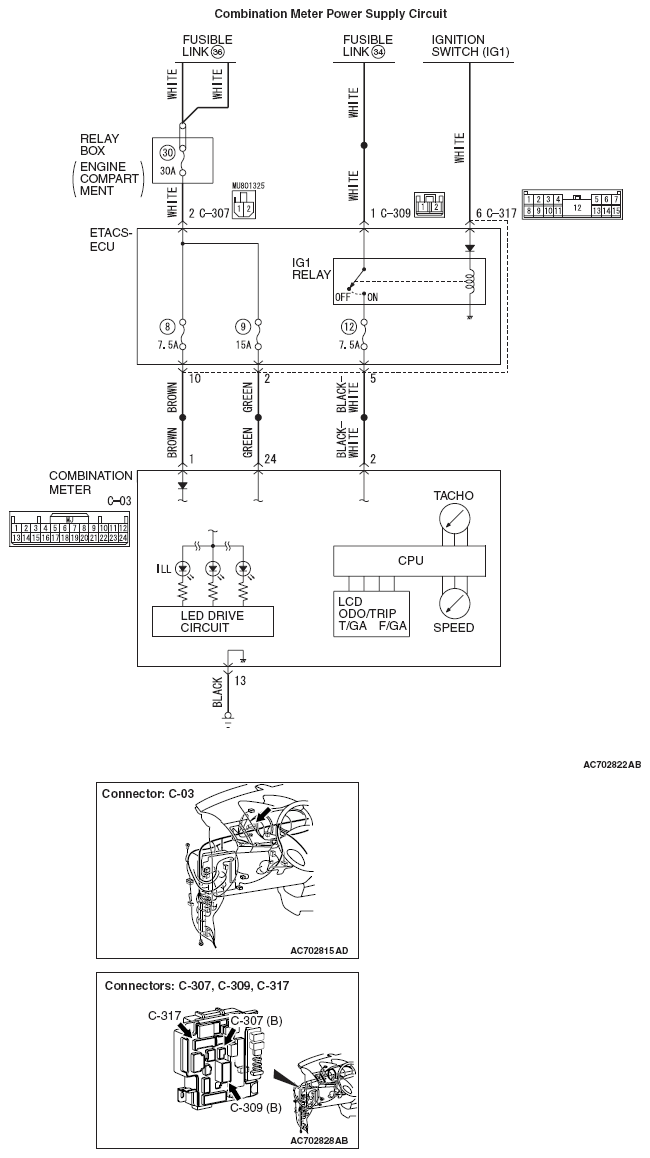

Fig 1: Combination Meter Power Supply Circuit Diagram

G05434220

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
