DTC B2464: The sticking of meter information switch: Notes

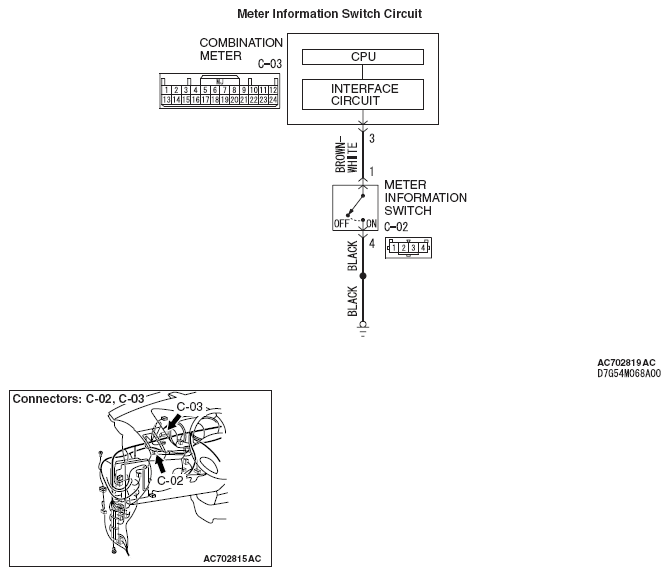

Fig 1: Meter Information Switch Circuit Diagram
G05434205Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
