Brake Modulator Hydraulic Unit (Hydraulic Unit And Abs-Ecu) Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
The hydraulic unit is heavy. Use care when removing it.
CAUTION:
- The hydraulic unit cannot be disassembled. Never loosen its nuts or bolts.
- Do not drop or shock the hydraulic unit.
- Do not turn the hydraulic unit upside down or lay it on its side.

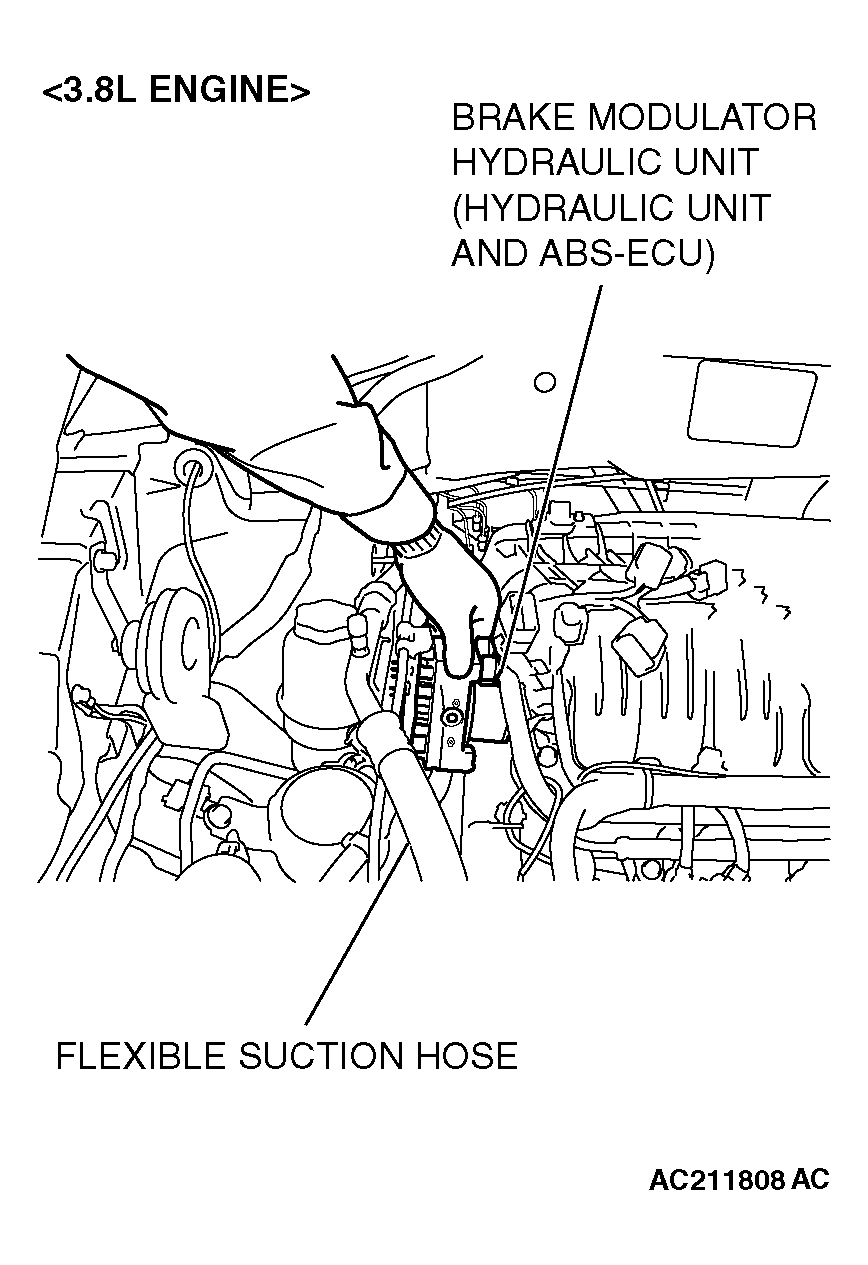

Remove the hydraulic unit as shown, taking care not to damage surrounding components such as the flexible suction hose < 3.8L engine >.
