<< A >> Abs-Ecu Harness Connector Disconnection

WARNING: This page is about a different variant/trim than selected.

Move the lock lever of the ABS-ECU connector as shown in the illustration, and then disconnect the harness connector.

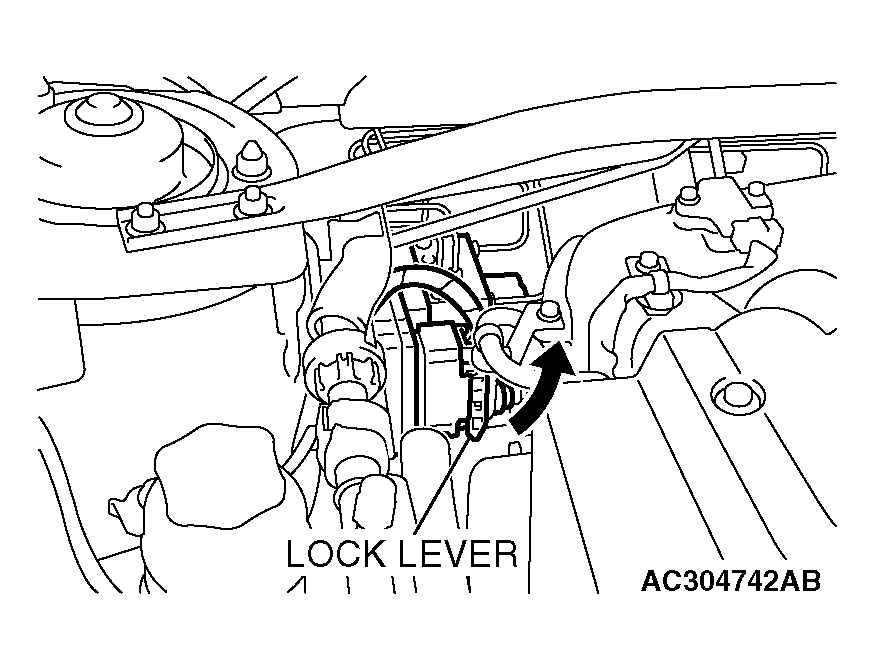

Fig 1: Moving Lock Lever Of ABS-ECU Connector
G04255446Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
