Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: The ABS-ECU is integrated in the hydraulic unit.

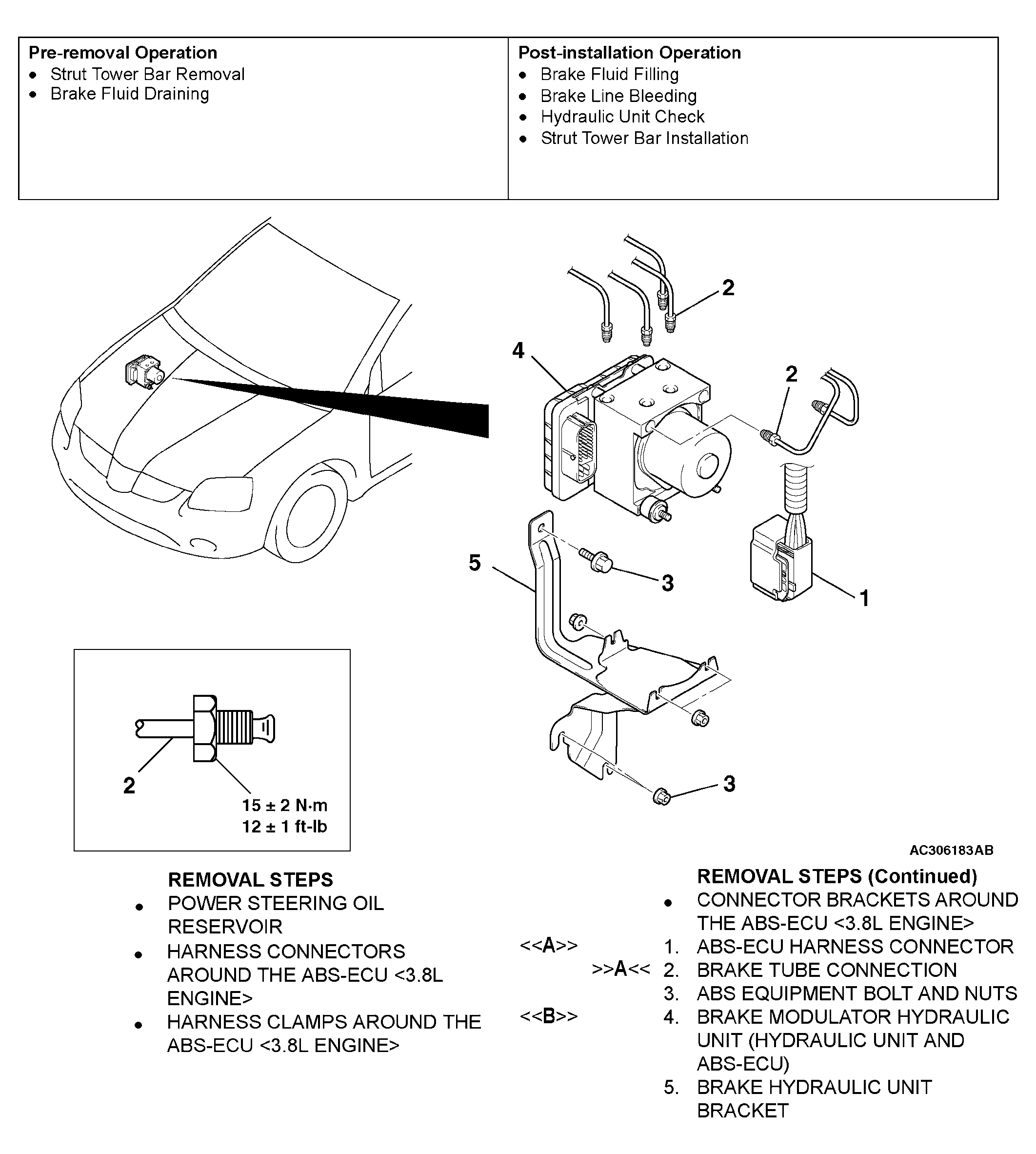

Fig 1: Removing/Installing Hydraulic Unit
G04255445Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
