Inspection Procedure 2: Power Supply Circuit System: Notes

WARNING: This page is about a different variant/trim than selected.

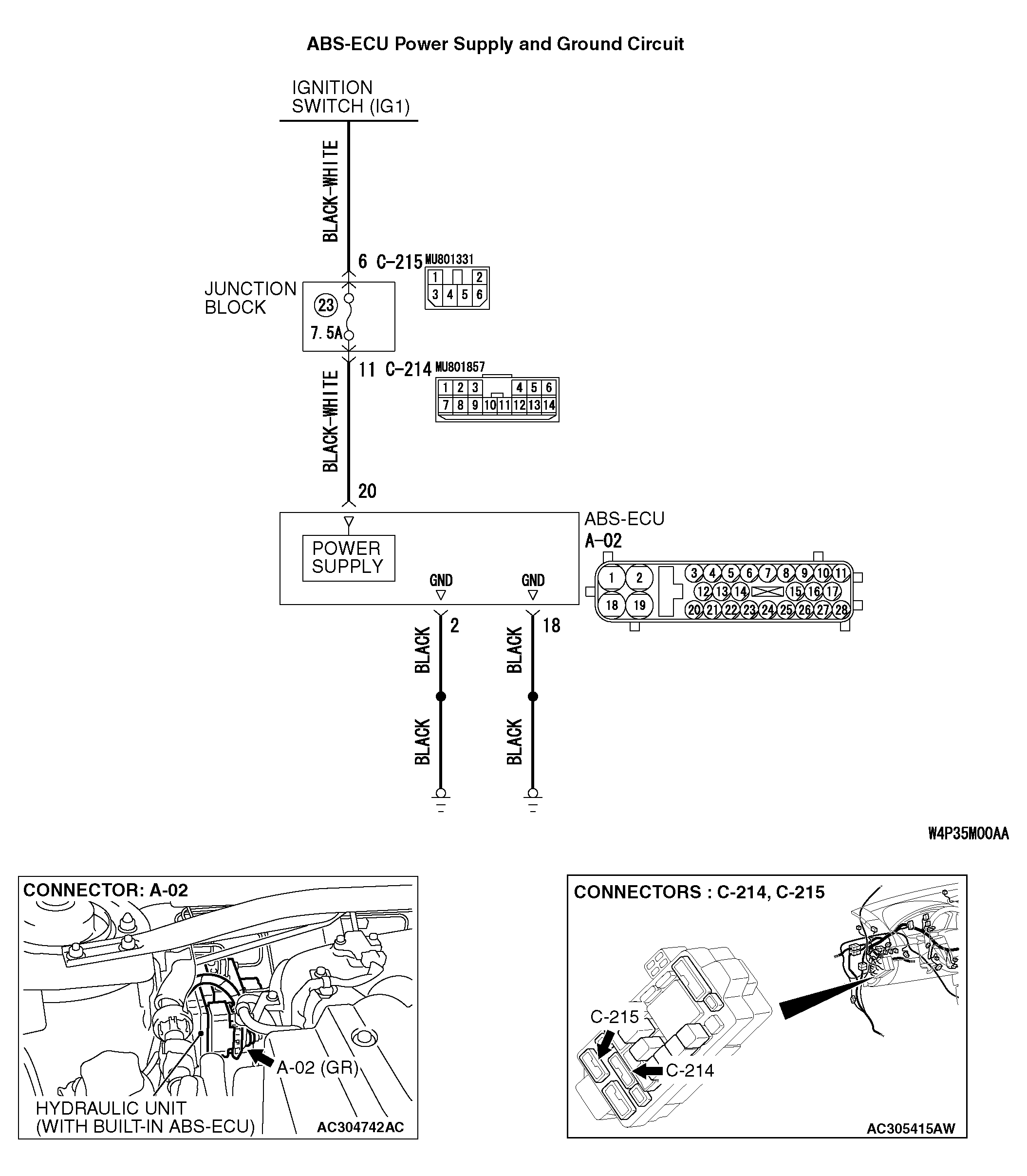

Fig 1: Identifying ABS-ECU Power & Ground Circuit Diagram
G04255418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
