DTC C1607: Trouble In Abs-Ecu: Diagnosis

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A

1. STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
   1. Connect scan tool MB991958 to the data link connector.
   2. Turn the ignition switch to the "ON" position.
   3. Diagnose the CAN bus line.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the CAN bus line found to be normal?

   YES:  Go to Step 2.

   NO:  Repair the CAN bus line (Refer to CAN BUS DIAGNOSTICS TABLE ). Then go to Step 2.

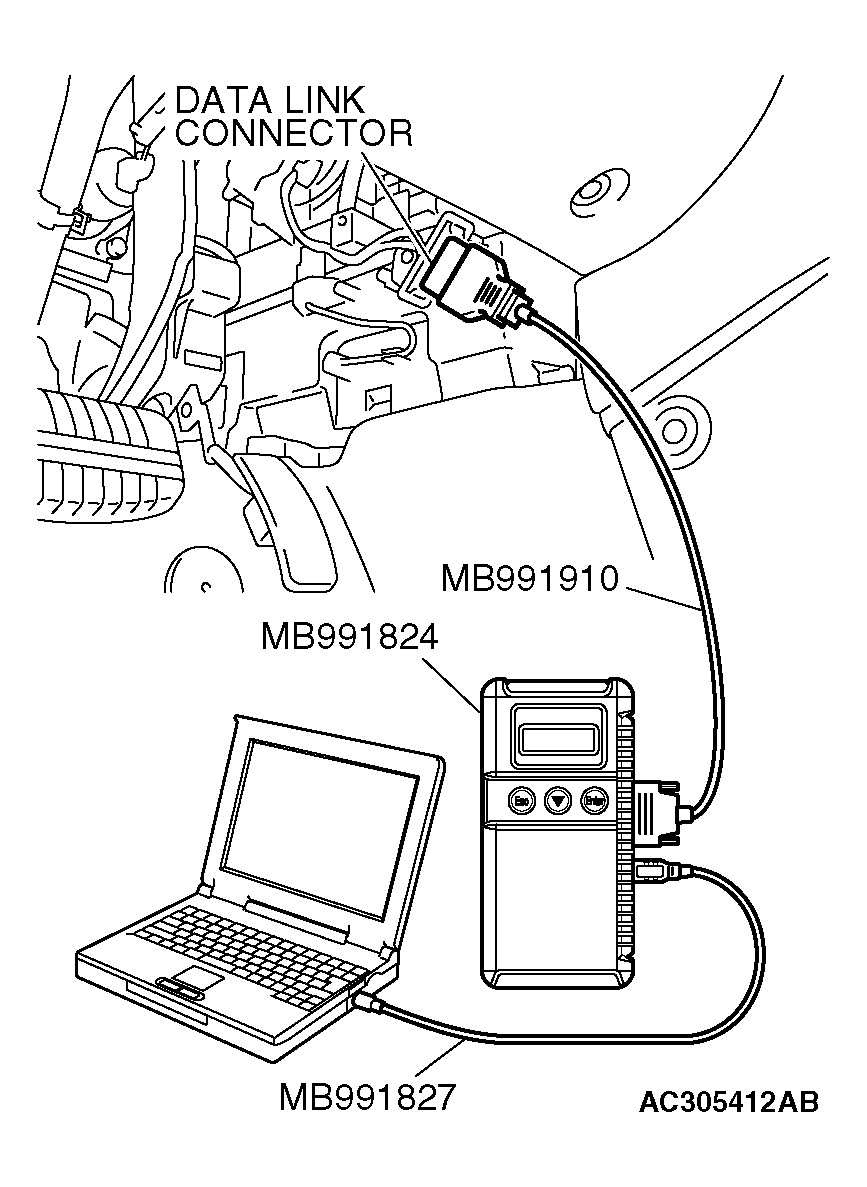

   Fig 1: Connecting Special Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Recheck for diagnostic trouble code.
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
   1. Turn the ignition switch to the "ON" position.
   2. Erase the DTC.
   3. Turn the ignition switch to the "LOCK" (OFF) position.
   4. Turn the ignition switch to the "ON" position.
   5. Check if the DTC is set.
   6. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is DTC C1607 set?

   YES:  Replace the hydraulic unit (integrated with ABS-ECU).

   NO:  The procedure is complete.

   Fig 2: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
