DTC C1395: Brake Fluid Filling Not Completed: Notes

WARNING: This page is about a different variant/trim than selected.

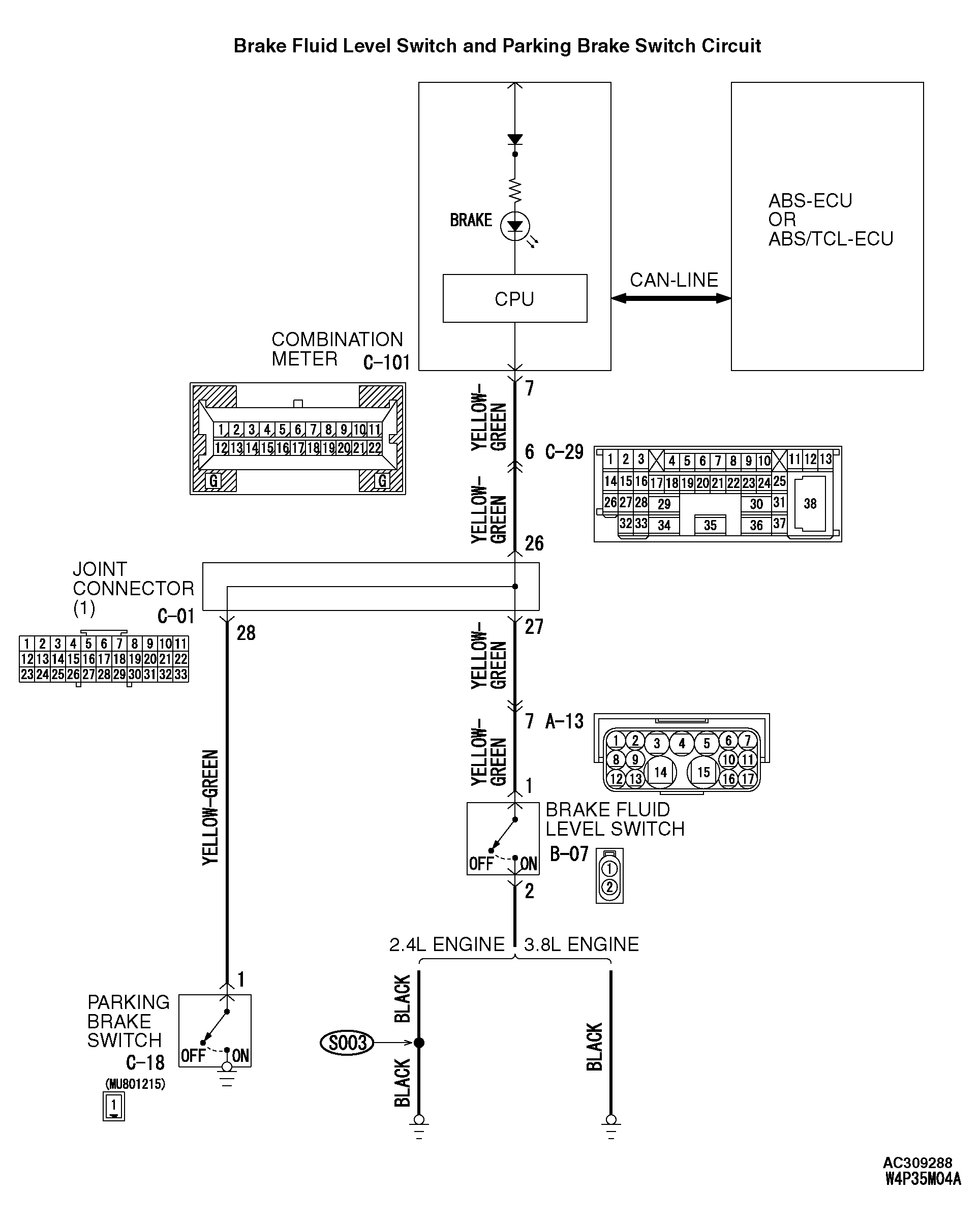

Fig 1: Identifying Brake Fluid Level Switch & Parking Brake Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

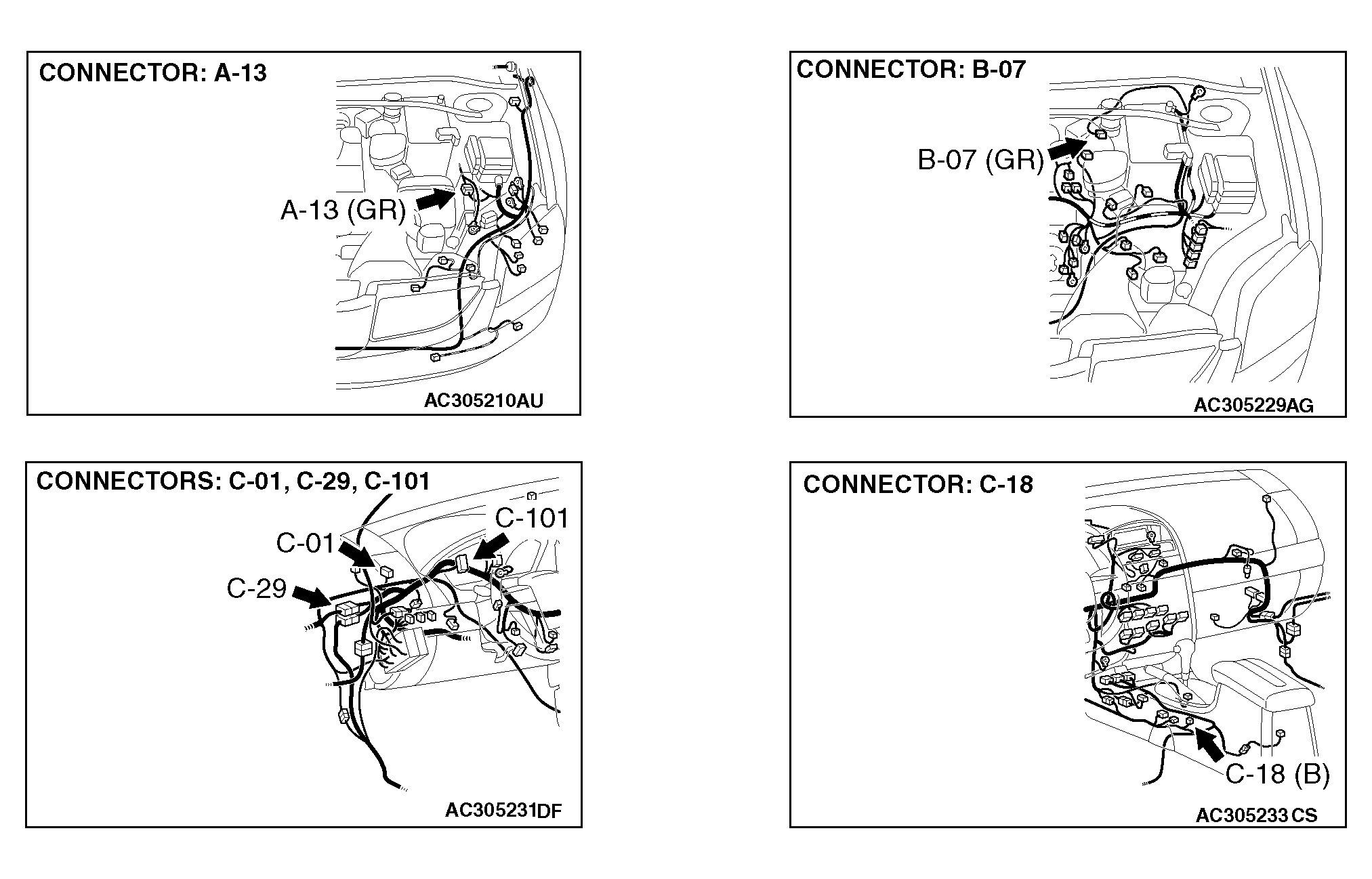

Fig 2: Identifying Brake Fluid Level Switch & Parking Brake Switch Circuit Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
